Economical LED Street Lighting for Highway-IL03

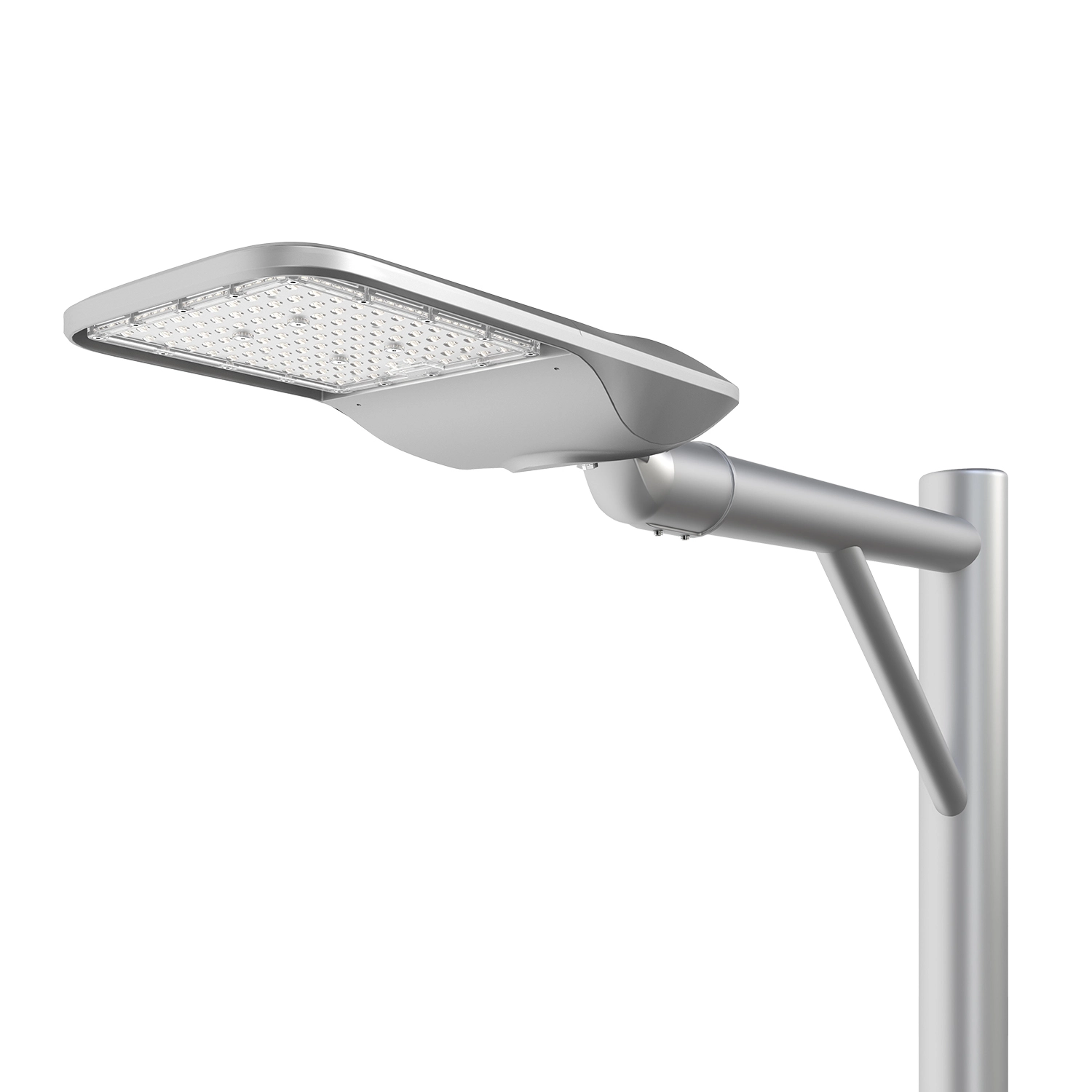

Economical 20W-230W LED-street-lamp-for-public Highway Pedestrian Light
20W-230W Economical LED-Street Light-IL03 for Public Highway Street Pedestrian Lighting Upgrade Zigbee or Lora Lighting Controller Available - Purchase Now from AOK.
✔ EFFICACY: 135~145lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09
✔ DISTRIBUTION: T201(85*150°)/T301(100*160°)/T401(35*146°)
✔ LIGHT CONTROL: Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 3030
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09
✔ DISTRIBUTION: T201(85*150°)/T301(100*160°)/T401(35*146°)
✔ LIGHT CONTROL: Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 3030
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
IL03-产品详情页-1 (2)
01 (2)
Product Description
Dimensions
Downloads
IL03 Series 230W Economical LED-street-lamp-for-public Highway Street Pedestrian Lighting Upgrade Zigbee or Lora Lighting Controller Available - Purchase Now FROM AOK.
The IL03 series 20W-230W is an economical, energy-saving solution for LED street lamps for public lighting that offers flexible application scenarios and high-cost performance. With a power range from 20W to 230W, this streamlined fixture boasts an industrial-level design standard and micro-lens systems that produce IESNA Type II, Type III, Type IV, and Type V distributions.
Additionally, the luminaries produce 0% total lumens above 90° (BUG Rating, U=0), resulting in uniform light output with lower glare. The optical systems also maintain an IP66 rating, ensuring reliability and longevity. Plus, the fixture has a reserved top spot for future sensor installation, making it a worry-free option with easy maintenance. Purchase the IL03 series 20W-230W LED street lamp for public lighting today!
Photometric Design
High quality lenses
Optimized, premium optical grade Mitsubishi polycarbonate lens, the efficient design of the modules make each light engine highly customizable, allowing the light distribution to be aimed toward the application.
Optical systems have diverse functions
Optical systems allow for versatility, tight cutoffs, and flexible control for a wide variety of applications.
Provide customized services
We deliver innovation and customization, further expanding the flexibility of the project. Exceptional uniformity and low glare for maximum comfort and neighbor-friendly.
Latest Devices
The photometric engine takes advantage of the latest generation of mid-power LEDs and dedicated optics for professional applications.
Used in conjunction with Lumileds 3030
Combined with Lumileds 3030 it provides an alternative solution for those who are looking for very cost-effective yet efficient lighting while keeping the same luminaire design.
Control Systems
Custom Dimming Profile
Intelligent luminaire drivers can be programmed with complex dimming profiles. With customized combinations of time intervals and light levels are possible. This feature does not require any extra wiring. The period between switching on and switching off is used to activate the preset dimming profile. The customized dimming system generates maximum energy savings while respecting the required lighting levels and uniformity throughout the night.
Daylight Sensor / Photocell
Photocell or daylight sensors switch the luminaire on as soon natural light falls to a certain level. It can be programmed to switch on during a storm, on a cloudy day (in critical areas) or only at nightfall so as to provide safety and comfort in public spaces.
Recommended Use
✔ Urban & residential streets.
✔ Bridges.
✔ Bike & pedestrian paths.
✔ Railway stations & metros.
✔ Car parks.
✔ Squares & pedestrian areas.
✔ Roads & motorways.
Warranty
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
Certification/Listing
CE/RoHS/CB Listed.
Product Sheet & Installation Guide
Certificates & Reports
IES Files
Technical Parameter
20W-80W
100W-230W
| Power(W) | 20 W | 30 W | 50 W | 60 W | 70 W | 80 W | |
| Driver | Meanwell / Sosen / Philips. Class 1/ Class 2, EU | ||||||
| Control option | Surge Protective Device、Daylight Sensor Control、1-10V Dimming | ||||||
| Photometric Data | |||||||
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) |
T2-85*150° | 2900lm | 4350lm | 7000lm | 8100lm | 9800lm | 10800lm |
| T3-100*160° | 2900lm | 4350lm | 7000lm | 8100lm | 9800lm | 10800lm | |
| T4-35*146° | 2900lm | 4350lm | 7000lm | 8100lm | 9800lm | 10800lm | |
| Beam angle | T201(85*150°)/T301(100*160°)/T401(35*146°) | ||||||
| LED model | Lumileds 3030 | ||||||
| Lens | Polycarbonate | ||||||
| Mechanical Data | |||||||
| EPA(SCx) | Front: 1.32ft² (0.122632m²); Side: 0.34ft² (0.031587m²); | ||||||
| Mounting | Post top / Side entry | ||||||
| Others | |||||||
| Product size | 551*214*136mm / 21.7*8.43*5.35 in | ||||||
| Net weight | 3.1kg / 6.83 lbs | 3.1kg / 6.83 lbs | 3.1kg / 6.83 lbs | 3.1kg / 6.83 lbs | 3.1kg / 6.83 lbs | 3.8kg / 8.38 lbs | |
| Power(W) | 100 W | 120 W | 150 W | 180 W | 200 W | 230 W | |
| Driver | Meanwell / Sosen / Philips. Class 1/ Class 2, EU | ||||||
| Control Option | Surge Protective Device、Daylight Sensor Control、1-10V Dimming | ||||||
| Photometric Data | |||||||
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) |
T2-85*150° | 13500lm | 16200lm | 20250lm | 25200lm | 27000lm | 31050lm |
| T3-100*160° | 13500lm | 16200lm | 20250lm | 25200lm | 27000lm | 31050lm | |
| T4-35*146° | 13500lm | 16200lm | 20250lm | 25200lm | 27000lm | 31050lm | |
| Beam angle | T201(85*150°)/T301(100*160°)/T401(35*146°) | ||||||
| LED model | Lumileds 3030 | ||||||
| Lens | Polycarbonate | ||||||
| Mechanical Data | |||||||
| EPA(SCx) | Front: 1.32ft² (0.122632m²); Side: 0.34ft² (0.031587m²); |
Front: 1.77ft² (0.164438m²); Side: 0.37ft² (0.034374m²); |
Front: 2.15ft² (0.2m²); Side: 0.44ft² (0.0413m²); |
||||
| Mounting | Post top / Side entry | ||||||
| Others | |||||||
| Product size | 551*214*136mm / 21.7*8.43*5.35 in |
621*254*136mm / 24.45*10*5.35 in | 756*308*138mm / 29.76*12.13*5.43 in | ||||
| Net weight | 3.8kg / 8.38 lbs | 4kg / 8.82 lbs | 4kg / 8.82 lbs | 5.6kg / 12.35 lbs | 5.6kg / 12.35 lbs | 5.6kg / 12.35 lbs | |
Distribution diagram
033
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
