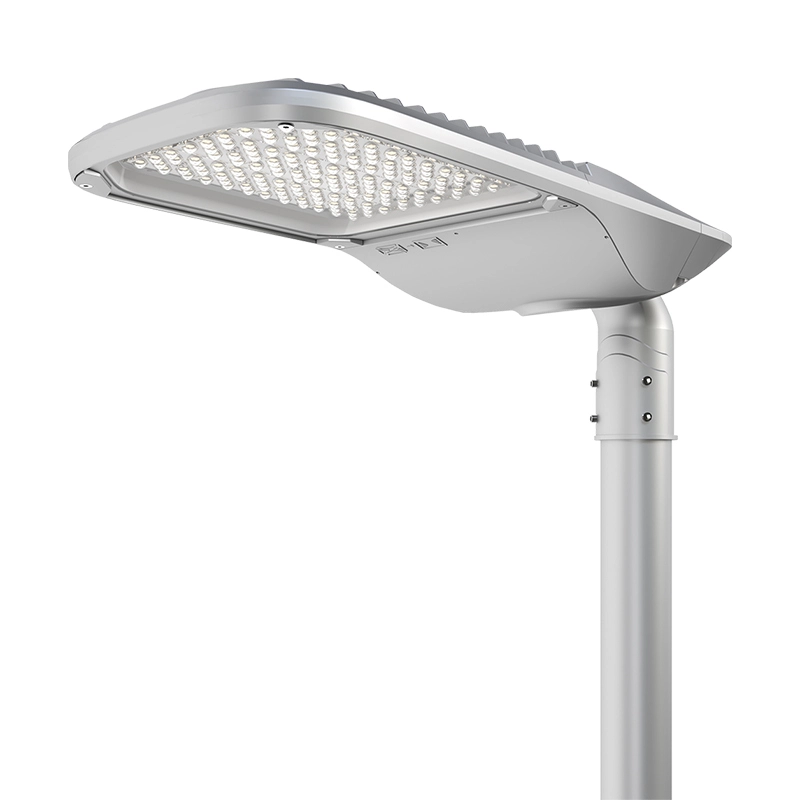

20W smart outdoor lighting for streets & road with Zhaga interface
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK08
✔ DISTRIBUTION: Type II (100*160°, 85*160°), customization acceptable
✔ LIGHT CONTROL: DALI, 1-10V, PWM, timer dimming, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 2835 / 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
main features
20W High-Performance Street Lighting Solution-ILH SERIES
Illuminate roads with confidence using the ILH Series—a robust, high-efficiency street lighting solution ranging from 20W to 300W. Designed in line with Zhaga and NEMA standards, this powerful fixture delivers exceptional brightness, energy savings, and durability, making it ideal for highways, roadways, and various outdoor applications.
Key Features:
Ideal Applications
✔ Highways: Delivers high-intensity lighting for enhanced nighttime safety.
✔ Roadways: Ensures uniform lighting for both city streets and rural routes.
✔ Public Spaces: Illuminates parks, plazas, and outdoor communal areas.
✔ Commercial Zones: Improves security and visibility across business premises.
Upgrade to the ILH Series for dependable, smart, and eco-conscious street lighting—engineered to meet the evolving demands of modern infrastructure.
Product Sheet & Installation Guide
Certificates & Reports
IES Files
Technical Parameter
|
Power |
20W |
30W |
40W |
50W |
60W |
70W |
|
|
Driver |
Inventronics / Sosen /Class 1 .OSRAM/Philips/MOSO Class 1/ Class 2, EU |
||||||
|
Control Option |
DALI, 1-10V/ PWM / timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. |
||||||
|
Photometric Data |
|||||||
|
Luminous flux (lm) (CRI 70Ra, 5000K) |
T201-(85*150°) |
3000lm |
4230lm |
6000lm |
7250lm |
8460lm |
9380lm |
|
T211-(110*155°) |
3000lm |
4230lm |
6000lm |
7250lm |
8460lm |
9380lm |
|
|
T221-(75*150°) |
3080lm |
4440lm |
6160lm |
7550lm |
8880lm |
9730lm |
|
|
T301-(100*160°) |
2900lm |
4080lm |
5800lm |
7000lm |
8160lm |
9380lm |
|
|
T311-(90*150°) |
3000lm |
4230lm |
6000lm |
7250lm |
8460lm |
9100lm |
|
|
T321-(100*145°) |
3080lm |
4440lm |
6160lm |
7550lm |
8880lm |
9730lm |
|
|
T411-(115*145°) |
3000lm |
4230lm |
6000lm |
7250lm |
8460lm |
9380lm |
|
|
T2(105*160°)/ |
3800lm |
5550lm |
7600lm |
9350lm |
11100lm |
12740lm |
|
|
Beam Angle |
Type-II (85*150°, 110*155°, 75*150°,105*160°) / Type III (100*160°, 90*150°, 100*145°,115*160°) / Type IV (115*145°) / Type V (150*150°) |
||||||
|
LED Model |
Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050 |
||||||
|
Lens |
Polycarbonate+tempered glass(4 mm thick) |
||||||
|
Mechanical Data |
|||||||
|
SCx |
Front: 0.0152 m²; Side: 0.0272 m² |
||||||
|
Mounting |
Side Entry/Post Top |
||||||
|
Others |
|||||||
|
Product Size |
512*179*118mm / 20.2*7.0*4.6 inches |
||||||
|
Net Weight |
2.9kg / 6.39 lbs |
||||||
|
Accessories(standard) |
Circuit breaker, 10KV SPD, breather vent |
||||||
|
Accessories(optional) |
Photocell (with Nema socket) |
||||||
|
Power |
20W |
30W |
40W |
50W |
60W |
70W |
80W |
90W |
100W |
120W |
|
|
Driver |
Inventronics / Sosen / Philips. Class 1/ Class 2, EU |
||||||||||
|
Control Option |
DALI, 1-10V/ PWM / timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. |
||||||||||
|
Photometric Data |
|||||||||||
|
Luminous flux (lm) |
T201-(85*150°) |
3120lm |
4650lm |
6000lm |
7400lm |
8760lm |
10080lm |
11520lm |
12870lm |
14100lm |
16440lm |
|
T211-(110*155°) |
3100lm |
4620lm |
5880lm |
7250lm |
8580lm |
9870lm |
11440lm |
12780lm |
14000lm |
16320lm |
|
|
T221-(75*150°) |
3160lm |
4680lm |
6160lm |
7600lm |
9000lm |
10360lm |
12320lm |
13680lm |
15000lm |
17400lm |
|
|
T301-(100*160°) |
3040lm |
4590lm |
5800lm |
7150lm |
8460lm |
9730lm |
11280lm |
12600lm |
13800lm |
16080lm |
|
|
T311-(90*150°) |
3100lm |
4620lm |
5880lm |
7250lm |
8580lm |
9870lm |
11440lm |
12780lm |
14000lm |
16320lm |
|
|
T321-(100*145°) |
3160lm |
4680lm |
6160lm |
7600lm |
9000lm |
10360lm |
12320lm |
13680lm |
15000lm |
17400lm |
|
|
T411-(115*145°) |
3100lm |
4620lm |
5880lm |
7250lm |
8580lm |
9870lm |
11440lm |
12780lm |
14000lm |
16320lm |
|
|
T2(105*160°)/ |
3900lm |
5790lm |
7680lm |
9550lm |
11400lm |
13160lm |
15200lm |
16920lm |
18700lm |
22200lm |
|
|
Beam Angle |
Type-II (85*150°, 110*155°, 75*150°,105*160°) / Type III (100*160°, 90*150°, 100*145°,115*160°) / Type IV (115*145°) / Type V (150*150°) |
||||||||||
|
LED Model |
Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050 |
||||||||||
|
Lens |
Polycarbonate+tempered glass(5 mm thick) |
Polycarbonate+tempered glass(4 mm thick) |
|||||||||
|
Mechanical Data |
|||||||||||
|
SCx |
Front: 0.014 m²; Side: 0.0214 m² |
Front: 0.0219 m²; Side: 0.035 m² |
|||||||||
|
Mounting |
Side Entry |
Side Entry/Post Top |
|||||||||
|
Others |
|||||||||||
|
Product Size |
470*230*79mm / 18.5*9.1*3.1 inches |
25.4*9.4*5.4 inches / 646*240*137mm |
|||||||||
|
Net Weight |
3.1kg / 6.83 lbs |
5.4kg / 11.90 lbs |
|||||||||
|
Accessories(standard) |
10KV SPD, breather vent |
Lid support, circuit breaker, 10KV SPD, breather vent |
|||||||||
|
Accessories(optional) |
Photocell (with Nema socket) |
||||||||||
|
Power |
130W |
140W |
150W |
160W |
170W |
180W |
200W |
220W |
230W |
300W |
|
|
Driver |
Inventronics / Sosen / Philips. Class 1/ Class 2, EU |
||||||||||
|
Control Option |
DALI, 1-10V/ PWM / timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. |
||||||||||
|
Photometric Data |
|||||||||||
|
Luminous flux (lm) |
T201-(85*150°) |
17550lm |
18200lm |
19200lm |
23200lm |
24310lm |
25380lm |
27400lm |
31020lm |
31970lm |
39600lm |
|
T211-(110*155°) |
17420lm |
18060lm |
19050lm |
23040lm |
24140lm |
25200lm |
27200lm |
30800lm |
31740lm |
39600lm |
|
|
T221-(75*150°) |
18590lm |
19740lm |
20850lm |
24320lm |
25500lm |
26640lm |
29000lm |
32560lm |
33580lm |
42000lm |
|
|
T301-(100*160°) |
17160lm |
17780lm |
18750lm |
22560lm |
23630lm |
24660lm |
26600lm |
30140lm |
31050lm |
39000lm |
|
|
T311-(90*150°) |
17420lm |
18060lm |
19050lm |
23040lm |
24140lm |
25200lm |
27200lm |
30800lm |
31740lm |
39300lm |
|
|
T321-(100*145°) |
18590lm |
19740lm |
20850lm |
24320lm |
25500lm |
26640lm |
29000lm |
32560lm |
33580lm |
42000lm |
|
|
T411-(115*145°) |
17420lm |
18060lm |
19050lm |
23040lm |
24140lm |
25200lm |
27200lm |
30800lm |
31740lm |
39600lm |
|
|
T2(105*160°)/ |
24700lm |
26460lm |
28200lm |
29920lm |
31620lm |
33300lm |
37400lm |
40920lm |
42320lm |
54600lm |
|
|
Beam Angle |
Type-II (85*150°, 110*155°, 75*150°,105*160°) / Type III (100*160°, 90*150°, 100*145°,115*160°) / Type IV (115*145°) / Type V (150*150°) |
||||||||||
|
LED Model |
Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050 |
||||||||||
|
Lens |
Polycarbonate+tempered glass(4mm thick) |
||||||||||
|
Mechanical Data |
|||||||||||
|
SCx |
Front: 0.0263 m²; Side: 0.0363 m² |
Front: 0.0285 m²; Side: 0.0412 m² |
Front: 0.0291 m²; |
||||||||
|
Mounting |
Side Entry/Post Top |
||||||||||
|
Others |
|||||||||||
|
Product Size |
676*290*137mm / |
756*308*138mm / |
756*308*138mm / |
||||||||
|
Net Weight |
6.0kg / 13.23 lbs |
6.8kg / 14.99 lbs |
8.2kg / 18.08 lbs |
||||||||
|
Accessories(standard) |
Lid support, circuit breaker, 10KV SPD, breather vent |
||||||||||
|
Accessories(optional) |
Photocell (with Nema socket) |
||||||||||
