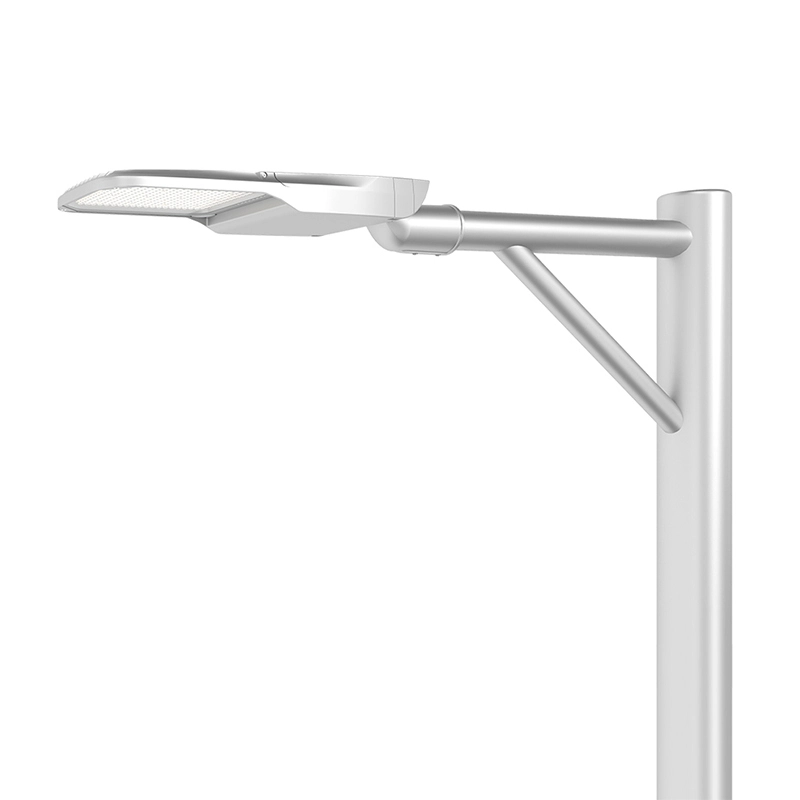

20W High-performance Street Light Solution superior brightness 1

20W High-performance Street Light Solution superior brightness 2

20W High-performance Street Light Solution superior brightness 3

20W High-performance Street Light Solution superior brightness 4

20W High-performance Street Light Solution superior brightness 5

20W High-performance Street Light Solution superior brightness 6

20W High-performance Street Light Solution superior brightness 7

20W High-performance Street Light Solution superior brightness

20W High-performance Street Light Solution ILH with superior brightness, Zhaga & NEMA standards. Exceptional lumen output of up to 185lm/W

✔ EFFICACY: Up to 185lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK08
✔ DISTRIBUTION: Type II (100*160°, 85*160°), customization acceptable
✔ LIGHT CONTROL: DALI, 1-10V, PWM, timer dimming, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 2835 / 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional

Inquiry

Write a Review

main features



Product Description

Dimensions

Downloads

20W High-Performance Street Lighting Solution-ILH SERIES

Illuminate roads with confidence using the ILH Series—a robust, high-efficiency street lighting solution ranging from 20W to 300W. Designed in line with Zhaga and NEMA standards, this powerful fixture delivers exceptional brightness, energy savings, and durability, making it ideal for highways, roadways, and various outdoor applications.

Key Features:

20W High-performance Street Light Solution superior brightness 10

High Efficacy Output

Delivers up to 185 lm/W for powerful, energy-efficient illumination tailored for roads and highways.

20W High-performance Street Light Solution superior brightness 11

Flexible LED Compatibility

Supports a range of LED configurations (2835, 3030, 5050) for customized lighting performance.

Premium Driver Options

Equipped with high-reliability drivers from Moso, Inventronics, Sosen, Philips, OSRAM, and uPowerTek, with both Class I and Class II configurations.

Smart Control Ready

Offers advanced dimming and control options, including DALI, 1- 10V, PWM, and timer dimming for intelligent lighting management.

Sports Lighting System and Smart Control Solution

Surge Protection

Optional SPD available in 10kV and 20kV ratings to safeguard the fixture against electrical fluctuations.

Strong Vibration Resistance

3G-rated to endure tough environments, meeting IEC 68-2-6 standards.

Optimized Thermal Management

Fin-style housing design enables excellent heat dissipation, extending operational lifespan.

Road & Street Lighting and Smart Control Solution

Rugged Protection

Rated IP66 for superior water and dust resistance, and IK08 for impact resistance, in compliance with EN 60529 and EN 62262.

Mounting Flexibility

Side-entry installation compatible with pole diameters ranging from Φ42mm to 60mm for adaptable placement.

Extended Lifespan

Built to last with an L70 rating of over 100,000 hours at 25°C ambient temperature.

Customizable Accessories

Enhance functionality with optional add-ons including SPD 10kV/20kV, breather vent, NEMA socket, Zhaga socket, photocell, PIR, or microwave sensors.

Ideal Applications

✔ Highways: Delivers high-intensity lighting for enhanced nighttime safety.

✔ Roadways: Ensures uniform lighting for both city streets and rural routes.

✔ Public Spaces: Illuminates parks, plazas, and outdoor communal areas.

✔ Commercial Zones: Improves security and visibility across business premises.

Upgrade to the ILH Series for dependable, smart, and eco-conscious street lighting—engineered to meet the evolving demands of modern infrastructure.

20W High-performance Street Light Solution superior brightness 21

Warranty

Standard 5-year warranty. An optional 10-year extended warranty is available—please consult with AOK sales for details.

20W High-performance Street Light Solution superior brightness 22

Certifications

CE certified. Additional documentation is available upon request.




Product Sheet & Installation Guide

AOK ILH(20W-300W)_Street Light_Installation Guide_

PDF

AOK_Catalog_Street Light_ILH_V25-05-14.pdf

PDF

iLH IES (simulate)

T231.zip

ZIP

T331.zip

ZIP

T401.zip

ZIP

Technical Parameter

20W-60WiLH

70W-110WiLH

120W-150WiLH

160W-200WiLH

240W-300WiLH

Model		AOK-iLH(S)-(20-60W)
Power		20W	30W	40W	50W	60W
Driver		Moso/Inventronics, Sosen/Class 1, (Sosen, Philips, OSRAM, Moso, uPowerTek) /Class 1, Class 2
Control Option		DALI-2, D4i,0/1-10V, PWM, timer dimming
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	175lm/W	172lm/W	175lm/W	173lm/W	172lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	3500lm	5160lm	7000lm	8650lm	10320lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	185lm/W	182lm/W	183lm/W	182lm/W	182lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	3700lm	5460lm	7320lm	9100lm	10920lm
Beam Angle		Type II (100160°, 85160°), customization acceptable
LED Model		2835 / 3030 / 5050
Lens		Polycarbonate+tempered glass(4/5 mm thick)
Mechanical Data
SCx		0.088m²(top view), 0.027m² (side view)
Mounting		Side Entry/Post Top, (Φ42~60mm pole), custom request
Others
Product Size		53519096mm/21.067.483.78"
Net Weight		2.8kg/6.17lbs
Standard Accessories		SPD 10KV, Breather vent, Level bubble
Optional Accessories		Circuit breaker,SPD 20KV, Nema photoelectric control socket, Nameplate,Shorting cap,Lens cover Photoelectric controller, Zhaga socket, PIR sensor, Microwave sensor, Support rod, Safety rope.

Model		AOK-iLH(M)-(70-110W)
Power		70W	80W	90W	100W	110W
Driver		Moso/Inventronics, Sosen/Class 1, (Sosen, Philips, OSRAM, Moso, uPowerTek) /Class 1, Class 2
Control Option		DALI-2, D4i,0/1-10V, PWM, timer dimming
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	175lm/W	174lm/W	173lm/W	172lm/W	170lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	12250lm	13920lm	15570lm	17200lm	18700lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	185lm/W	184lm/W	183lm/W	182lm/W	180lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	12950lm	14720lm	16470lm	18200lm	19800lm
Beam Angle		Type II (100160°, 85160°), customization acceptable
LED Model		2835 / 3030 / 5050
Lens		Polycarbonate+tempered glass(4/5 mm thick)
Mechanical Data
SCx		0.1m²(top view), 0.028m² (side view)
Mounting		Side Entry/Post Top, (Φ42~60mm pole), custom request
Others
Product Size		54022096mm/21.268.663.78"
Net Weight		3.4kg/7.5lbs
Standard Accessories		SPD 10KV, Breather vent, Level bubble
Optional Accessories		Circuit breaker,SPD 20KV, Nema photoelectric control socket, Nameplate,Shorting cap,Lens cover Photoelectric controller, Zhaga socket, PIR sensor, Microwave sensor, Support rod, Safety rope.

Model		AOK-iLH(L)-(120-150W)
Power		120W	130W	140W	150W
Driver		Moso/Inventronics, Sosen/Class 1, (Sosen, Philips, OSRAM, Moso, uPowerTek) /Class 1, Class 2
Control Option		DALI-2, D4i,0/1-10V, PWM, timer dimming
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	173lm/W	172lm/W	171lm/W	170lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	20760lm	22360lm	23940lm	25500lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	183lm/W	182lm/W	181lm/W	180lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	21960lm	23660lm	25340lm	27000lm
Beam Angle		Type II (100160°, 85160°), customization acceptable
LED Model		2835 / 3030 / 5050
Lens		Polycarbonate+tempered glass(4/5 mm thick)
Mechanical Data
SCx		0.11m²(top view), 0.029m² (side view)
Mounting		Side Entry/Post Top, (Φ42~60mm pole), custom request
Others
Product Size		59222096mm/23.38.663.78"
Net Weight		3.9kg/8.61lbs
Standard Accessories		SPD 10KV, Breather vent, Level bubble
Optional Accessories		Circuit breaker,SPD 20KV, Nema photoelectric control socket, Nameplate,Shorting cap,Lens cover Photoelectric controller, Zhaga socket, PIR sensor, Microwave sensor, Support rod, Safety rope.

Model		AOK-iLH(XL)-(160-200W)
Power		160W	170W	180W	190W	200W
Driver		Moso/Inventronics, Sosen/Class 1 (Philips, Moso, uPowerTek) /Class 1, Class 2
Control Option		DALI-2, D4i,0/1-10V, PWM, timer dimming
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	173lm/W	172lm/W	171lm/W	170lm/W	170lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	27680lm	29240lm	30780lm	32300lm	34000lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	184lm/W	183lm/W	182lm/W	181lm/W	180lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	29440lm	31110lm	32760lm	34390lm	36000lm
Beam Angle		Type II (100160°, 85160°), customization acceptable
LED Model		2835 / 3030 / 5050
Lens		Polycarbonate+tempered glass(4/5 mm thick)
Mechanical Data
SCx		0.138m²(top view), 0.029m² (side view)
Mounting		Side Entry/Post Top, (Φ42~60mm pole), custom request
Others
Product Size		60227096mm/23.710.633.78"
Net Weight		4.8kg/10.58lbs
Standard Accessories		SPD 10KV, Breather vent, Level bubble
Optional Accessories		Circuit breaker,SPD 20KV, Nema photoelectric control socket, Nameplate,Shorting cap,Lens cover Photoelectric controller, Zhaga socket, PIR sensor, Microwave sensor, Support rod, Safety rope.

Model		AOK-iLH(XXL)-(240-300W)
Power		240W	250W	260W	270W	280W	290W	300W
Driver		Moso/Inventronics, Sosen/Class 1, (Philips) /Class 1, Class 2
Control Option		DALI, 0/1-10V, PWM, timer dimming
Photometric Data
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	173lm/W	172lm/W	172lm/W	171lm/W	171lm/W	170lm/W	170lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)	T2(100*160°)	41520lm	43000lm	44720lm	46170lm	47880lm	49300lm	51000lm
Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	185lm/W	184lm/W	183lm/W	182lm/W	182lm/W	181lm/W	180lm/W
Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050	T2(85*160°)	44400lm	46000lm	47580lm	49140lm	50960lm	52490lm	54000lm
Beam Angle		Type II (100160°, 85160°), customization acceptable
LED Model		2835 / 3030 / 5050
Lens		Polycarbonate+tempered glass(4/5 mm thick)
Mechanical Data
SCx		0.184m²(top view), 0.032m² (side view)
Mounting		Side Entry/Post Top, (Φ42~60mm pole), custom request
Others
Product Size		71529096mm/28.1511.423.78"
Net Weight		7.5kg/16.531lbs
Standard Accessories		SPD 10KV, Breather vent, Level bubble
Optional Accessories		Circuit breaker,SPD 20KV, Nema photoelectric control socket, Nameplate,Shorting cap,Lens cover Photoelectric controller, Zhaga socket, PIR sensor, Microwave sensor, Support rod, Safety rope.

Distribution diagram



Application Scenarios
