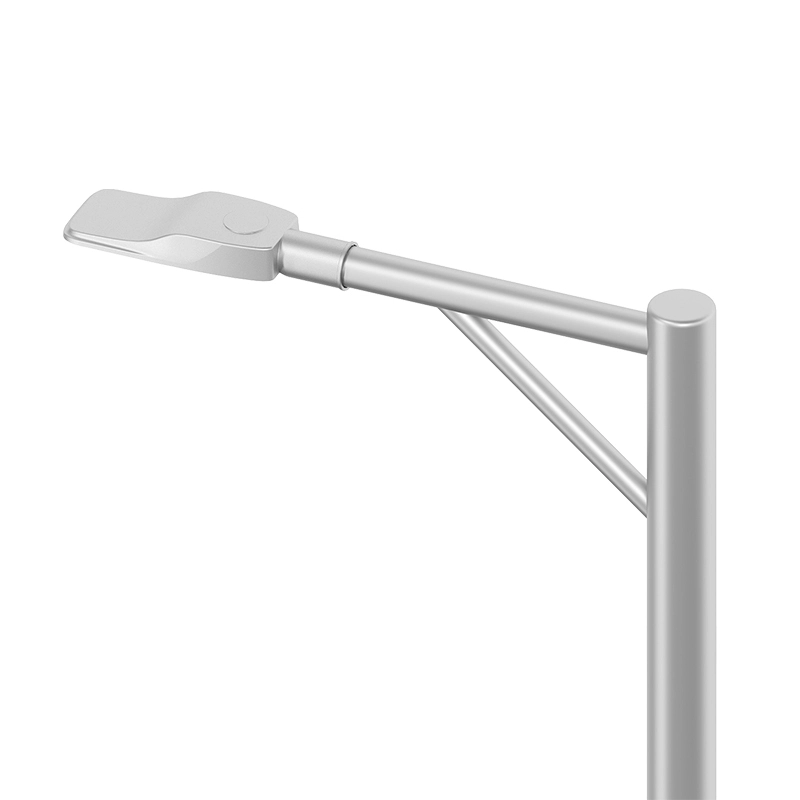

High-performance LED Roadway & Street Lighting-ILF
20-230W high-performance roadway lighting solution superior brightness
High-performance LED with 20W-300W highway & roadway lighting solution, Zhaga & NEMA standards. ILF series delivers exceptional lumen output of up to 195lm/W, providing superior brightness and efficiency
✔ EFFICACY: up to 195lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T3(65*150°), Customization acceptable
✔ LIGHT CONTROL: DALI, 1-10V, PWM, timer dimming, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 2835 / 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T3(65*150°), Customization acceptable
✔ LIGHT CONTROL: DALI, 1-10V, PWM, timer dimming, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 2835 / 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
微信图片_20250311091730
微信图片_20250326154239
Product Description
Dimensions
Downloads
OK High-Performance ILF-Series Highway & Roadway Lighting Solutioncing operational costs.
Discover the ultimate in roadway illumination with the ILF-series 20W-230W lighting solution, designed to meet Zhaga and NEMA standards. Perfect for highways and roadways, this high-performance fixture offers exceptional lumen output and energy efficiency, providing superior brightness while reducing operational costs.
Key Features:
Outstanding Efficacy
Achieve high-quality lighting with up to 195 lumens per watt, ensuring bright and effective illumination for highways and roadways.
Versatile LED Options
Compatible with multiple LED types including 2835, 3030, and 5050, allowing for tailored lighting solutions to fit various requirements.
Reliable Drivers
Equipped with top-tier drivers from MOSO, SOSEN, Inventronics, or DONE, ensuring stable performance and long-term reliability.
Advanced Control Options
Features DALI, 1-10V, PWM, and timer dimming controls for customizable and efficient lighting management tailored to specific needs.
Enhanced Surge Protection
Optional surge protection devices with ratings of 10kV or 20kV to protect against electrical surges and ensure durability.
Exceptional Vibration Resistance
With a 3G rating, this fixture is designed to withstand vibrations and shocks, conforming to the IEC 68-2-6 standard for robust performance.
Self-Cleaning Housing
Designed with a self-cleaning housing to maintain clear optical performance and reduce maintenance needs, enhancing the longevity of the fixture.
Superior Protection Ratings
Optical systems are rated IP66 for dust and water resistance and IK10 for impact resistance, meeting EN 60529 and EN 62262 standards.
Flexible Mounting Options
Side entry mounting compatible with poles having a diameter of Φ42~60mm, providing versatility in installation.
Long Lifespan
Engineered for durability with an L70 lifespan exceeding 100,000 hours at a 25°C ambient temperature, ensuring long-term performance.
Customizable Accessories
Available with optional accessories including 10kV/20kV SPD, breather vent, NEMA socket, photocell, Zhaga, PIR, or microwave sensors for enhanced functionality.
Applications
The ILF-series lighting solution is ideal for:
✔ Highways: Provides clear, bright illumination for improved visibility and safety on major roads.
✔ Roadways: Ensures consistent and efficient lighting for urban and rural roads.
✔ Public Areas: Enhances lighting for parks, plazas, and other public spaces.
✔ Commercial Properties: Perfect for illuminating commercial areas and enhancing visibility for businesses.
Upgrade to the ILF-series highway and roadway lighting solution to benefit from cutting-edge technology, durability, and energy efficiency. Designed to meet the rigorous demands of modern infrastructure, this lighting solution ensures reliable performance and superior illumination, making it the ideal choice for a wide range of applications.
Warranty
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
Certification/Listing
For detailed certificates please request
Product Sheet & Installation Guide
Certificates & Reports
IES Files
Technical Parameter
20W-60W 70W-100W iLF
110W-150W
160W-190W
200W-230W
| Power | 20W | 30W | 40W | 50W | 60W | |
| Driver | MOSO/SOSEN/Inventronics/DONE, Class 1 | MOSO/SOSEN, Class 1 | ||||
| Operating Temperature | -40°C to 50°C (-40 °F to 122 °F) | |||||
| Control Option | DALI, 1-10V, PWM, timer dimming | |||||
| Photometric Data | ||||||
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T201 (85*150°) |
3280lm | 4830lm | 6080lm | 7250lm | 8400lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T201 (85*150°) |
3340lm | 4890lm | 6280lm | 7650lm | 9000lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T202 (75*150°) |
3900lm | 5790lm | 7680lm | 9550lm | 11280lm |
| Beam Angle | T201(85*150°), T202(75*150°) Customization acceptable | |||||
| LED Model | 2835 / 3030 / 5050 | |||||
| Lens | Polycarbonate | |||||
| Mechanical Data | ||||||
| SCx | 0.05m²(top view), 0.019m² (side view) | |||||
| Mounting | Side entry, (Φ42~60mm pole), custom request | |||||
| Others | ||||||
| Product Size | 427*150*73mm/16.81*5.91*2.87" | |||||
| Net Weight | 1.9kg/4.19lbs | |||||
| Standard Accessories | None | |||||
| Optional Accessories | 10kV/20kV SPD, breather vent, Nema shocket, Photocell, Zhaga, PIR or Microwave sensor | |||||
| Power | 70W | 80W | 90W | 100W | |
| Driver | MOSO/SOSEN/Inventronics/DONE,Class 1 | ||||
| Operating Temperature | -40°C to 50°C (-40 °F to 122 °F) | ||||
| Control Option | DALI, 1-10V, PWM, timer dimming | ||||
| Photometric Data | |||||
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T201 (85*150°) |
10360lm | 11600lm | 12780lm | 14000lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T201 (85*150°) |
10920lm | 12320lm | 13680lm | 15000lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T202 (75*150°) |
13370lm | 15200lm | 17010lm | 18800lm |
| Beam Angle | T201(85*150°), T202(75*150°) Customization acceptable | ||||
| LED Model | 2835 / 3030 / 5050 | ||||
| Lens | Polycarbonate | ||||
| Mechanical Data | |||||
| SCx | 0.07m²(top view), 0.02m²(side view) | ||||
| Mounting | Side entry, (Φ42~60mm pole), custom request | ||||
| Others | |||||
| Product Size | 477*190*74mm/18.78*7.48*2.91" | ||||
| Net Weight | 2.7KG/5.95lbs | ||||
| Standard Accessories | None | ||||
| Optional Accessories | 10kV/20kV SPD, breather vent, Nema shocket, Photocell, Zhaga, PIR or Microwave sensor | ||||
| Power | 110W | 120W | 130W | 140W | 150W | |
| Driver | MOSO/SOSEN/Inventronics/DONE, Class 1 | |||||
| Operating Temperature | -40°C to 50°C (-40 °F to 122 °F) | |||||
| Control Option | DALI, 1-10V, PWM, timer dimming | |||||
| Photometric Data | ||||||
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T301 (80*150°) |
16170lm | 17400lm | 18590lm | 19880lm | 21000lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T301 (80*150°) |
17270lm | 18600lm | 19890lm | 21280lm | 22500lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T202 (75*150°) |
21120lm | 22920lm | 24700lm | 26460lm | 28200lm |
| Beam Angle | T202(75*150°),T301(80*150°), Customization acceptable | |||||
| LED Model | 2835 / 3030 / 5050 | |||||
| Lens | Polycarbonate | |||||
| Mechanical Data | ||||||
| SCx | 0.11m²(top view), 0.024m² (side view) | |||||
| Mounting | Side entry, (Φ42~60mm pole), custom request | |||||
| Others | ||||||
| Product Size | 562*240*72mm/21.13*9.45*2.83" | |||||
| Net Weight | 3.7kg/8.16lbs | |||||
| Standard Accessories | None | |||||
| Optional Accessories | 10kV/20kV SPD, breather vent, Nema shocket, Photocell, Zhaga, PIR or Microwave sensor | |||||
| Power | 160W | 170W | 180W | 190W | |
| Driver | MOSO/SOSEN/Inventronics/DONE, Class 1 | ||||
| Operating Temperature | -40°C to 50°C (-40 °F to 122 °F) | ||||
| Control Option | DALI, 1-10V, PWM, timer dimming | ||||
| Photometric Data | |||||
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T301 (65*150°) |
23520lm | 24820lm | 26100lm | 27360lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T301 (65*150°) |
25120lm | 26520lm | 27900lm | 29260lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T202 (75*150°) |
31200lm | 32980lm | 34740lm | 36480lm |
| Beam Angle | T202(75*150°),T301 (65*150°), Customization acceptable | ||||
| LED Model | 2835 / 3030 / 5050 | ||||
| Lens | Polycarbonate | ||||
| Mechanical Data | |||||
| SCx | 0.14m²(top view), 0.027m² (side view) | ||||
| Mounting | Side entry, (Φ42~60mm pole), custom request | ||||
| Others | |||||
| Product Size | 617*280*73mm/24.29*9.86*2.87" | ||||
| Net Weight | 4.8kg/10.58lbs | ||||
| Standard Accessories | None | ||||
| Optional Accessories | 10kV/20kV SPD, breather vent, Nema shocket, Photocell, Zhaga, PIR or Microwave sensor | ||||
| Power | 200W | 210W | 220W | 230W | |
| Driver | MOSO/SOSEN/Inventronics/DONE, Class 1 | ||||
| Operating Temperature | -40°C to 50°C (-40 °F to 122 °F) | ||||
| Control Option | DALI, 1-10V, PWM, timer dimming | ||||
| Photometric Data | |||||
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T301 (65*150°) |
28600lm | 29820lm | 31020lm | 32200lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T301 (65*150°) |
30600lm | 31920lm | 33220lm | 34500lm |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T202 (75*150°) |
38200lm | 39900lm | 41580lm | 43240lm |
| Beam Angle | T202(75*150°),T301 (65*150°), Customization acceptable | ||||
| LED Model | 2835 / 3030 / 5050 | ||||
| Lens | Polycarbonate | ||||
| Mechanical Data | |||||
| SCx | 0.14m²(top view), 0.027m² (side view) | ||||
| Mounting | Side entry, (Φ42~60mm pole), custom request | ||||
| Others | |||||
| Product Size | 617*280*73mm/24.29*9.86*2.87" | ||||
| Net Weight | 4.8kg/10.58lbs | ||||
| Standard Accessories | None | ||||
| Optional Accessories | 10kV/20kV SPD, breather vent, Nema shocket, Photocell, Zhaga, PIR or Microwave sensor | ||||
Distribution diagram
