20W–135W Compact High-Performance 195lm/W Street Lighting Solution
20W–135W Compact High-Performance 195lm/W Street Lighting Solution with Zhaga & NEMA standards, providing superior brightness and efficiency.
✔ EFFICACY: up to 195lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T201(85*150°), T211(80*150°),T202(75*150°),Customization acceptable
✔ LIGHT CONTROL: DALI, 1-10V, PWM, timer dimming, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 2835 / 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T201(85*150°), T211(80*150°),T202(75*150°),Customization acceptable
✔ LIGHT CONTROL: DALI, 1-10V, PWM, timer dimming, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 2835 / 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
ILG-产品详情页-1 (2)
ILG-产品详情页-2 (2)
Product Description
Dimensions
Downloads

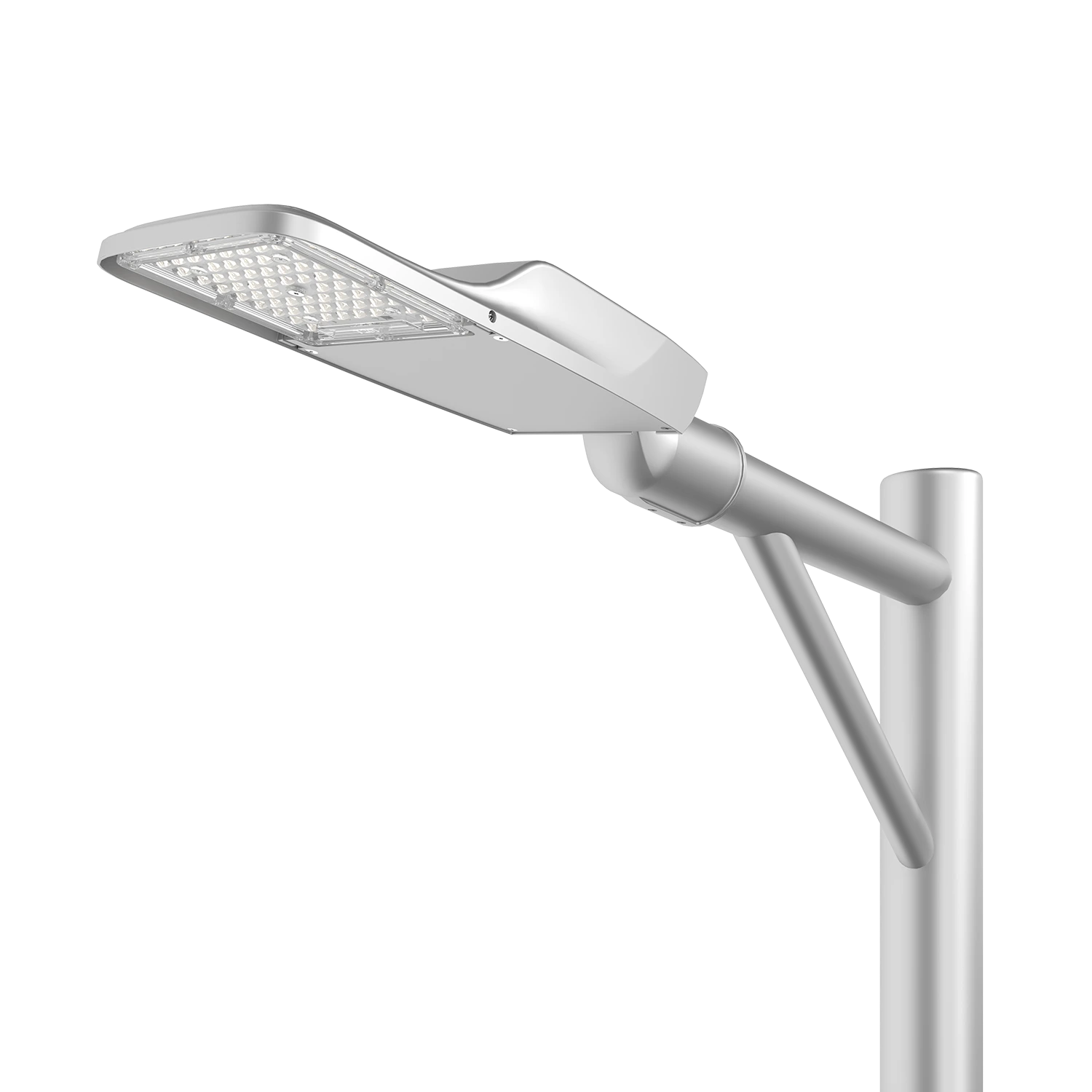

20W–135W Compact High-Performance Street Lighting Solution-ILG-Series
Experience superior high-performance street lighting with the ILG-Series, a compact and efficient street lighting solution engineered for optimal performance in roadway applications. Designed to meet Zhaga and NEMA standards, this advanced lighting fixture offers outstanding brightness, energy savings, and long-term reliability—ideal for highways, urban streets, and public spaces.
Key Features
Exceptional Efficiency
Delivers up to 195lm/W, ensuring powerful illumination with reduced energy consumption.
Flexible LED Compatibility
Supports 2835, 3030, and 5050 LED types to provide adaptable lighting configurations.
Premium Driver Options
Equipped with trusted Class I drivers (MOSO, SOSEN, Inventronics, DONE) and Class II (DONE) for dependable performance and long service life.
Smart Control Capabilities
Offers advanced dimming options: DALI, 1-10V, PWM, and timer dimming, enabling precise control and energy optimization.
Robust Surge Protection
Optional 10kV or 20kV SPD protects against electrical surges, extending product lifespan.
Vibration-Resistant Design
Built to 3G rating (IEC 68-2-6), it withstands vibration and shocks for dependable performance in demanding environments.
Self-Cleaning Housing
Engineered with a self-cleaning structure to maintain optical clarity and reduce maintenance efforts.
High Protection Ratings
IP66-rated for dust and water resistance; IK10-rated for superior impact protection (EN 60529 / EN 62262 compliant).
Adaptable Mounting
Side-entry installation compatible with Φ42–60mm poles, offering flexibility for various setups.
Long Operating Life
Rated L70 >100,000 hours at 25°C, ensuring consistent performance over time.
Customizable Add-ons
Available options include SPD (10kV/20kV), breather vent, NEMA socket, photocell, Zhaga socket, and PIR/microwave sensors for intelligent functionality.
Applications
✔ Highways: Enhances safety and visibility on major thoroughfares.
✔ Roadways: Delivers consistent lighting for both urban and rural roads.
✔ Public Areas: Ideal for parks, squares, and other shared spaces.
✔ Commercial Zones: Improves illumination around retail and business centers.
Warranty
● Standard 5-year warranty.
● An optional 10-year warranty is available upon consultation.
● An optional 10-year warranty is available upon consultation.
Certification & Compliance
CE Certified — For full documentation, please contact our sales team.
Product Sheet & Installation Guide
Technical Parameter
20W-60WiLG
70W-135WiLG
| Power | 20W | 30W | 40W | 50W | 60W | |
| Driver | Class I (MOSO/SOSEN/Inventronics/DONE), Class II (DONE) | |||||
| Control Option | DALI, 0/1-10V, PWM, timer dimming | |||||
| Photometric Data | ||||||
| Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T201(85*150°) T211(80*150°) |
157lm/W | 153lm/W | 147lm/W | 143lm/W | 140lm/W |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T201(85*150°) T211(80*150°) |
3280lm | 4830lm | 6080lm | 7250lm | 8400lm |
| Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T201(85*150°) T211(80*150°) |
167lm/W | 163lm/W | 157lm/W | 153lm/W | 150lm/W |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T201(85*150°) T211(80*150°) |
3340lm | 4890lm | 6280lm | 7650lm | 9000lm |
| Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T202(75*150°) | 195lm/W | 193lm/W | 192lm/W | 191lm/W | 188lm/W |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T202(75*150°) | 3900lm | 5790lm | 7680lm | 9550lm | 11280lm |
| Beam Angle | T201(85*150°), T211(80*150°),T202(75*150°),Customization acceptable | |||||
| LED Model | 2835 / 3030 / 5050 | |||||
| Lens | Polycarbonate | |||||
| Mechanical Data | ||||||
| SCx | 0.064m²(top view), 0.02m² (side view) | |||||
| Mounting | Side Entry/Post Top, (Φ42~60mm pole), custom request | |||||
| Others | ||||||
| Product Size | 479*159*89mm/18.86*6.23*3.5" | |||||
| Net Weight | 2.5kg/5.51lbs | |||||
| Standard Accessories | None | |||||
| Optional Accessories | 10kV/20kV SPD, breather vent, NEMA shocket, Photocell, Zhaga, PIR or Microwave sensor, M20 waterproof joint, CCT & Power adjustable optional | |||||
| Power | 70W | 80W | 90W | 100W | 110W | 120W | 135W | |
| Driver | Class I (MOSO/SOSEN/Inventronics) | |||||||
| Control Option | DALI, 0/1-10V, PWM, timer dimming | |||||||
| Photometric Data | ||||||||
| Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T201(85*150°) | 153lm/W | 150lm/W | 148lm/W | 146lm/W | 144lm/W | 142lm/W | 140lm/W |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Normal | T201(85*150°) | 10710lm | 12000lm | 13320lm | 14600lm | 15840lm | 17040lm | 18900lm |
| Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T201(85*150°) | 163lm/W | 160lm/W | 158lm/W | 156lm/W | 154lm/W | 152lm/W | 150lm/W |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-Performance | T201(85*150°) | 11410lm | 12800lm | 14220lm | 15600lm | 16940lm | 18240lm | 20250lm |
| Efficacy(lm/W) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T201(85*150°) | 194lm/W | 193lm/W | 192lm/W | 191lm/W | 190lm/W | 189lm/W | 188lm/W |
| Luminous Flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%)-5050-Pro | T201(85*150°) | 13580lm | 15440lm | 17280lm | 19100lm | 20900lm | 22680lm | 25380lm |
| Beam Angle | T201(85*150°) , Customization acceptable | |||||||
| LED Model | 2835 / 3030 / 5050 | |||||||
| Lens | Polycarbonate | |||||||
| Mechanical Data | ||||||||
| SCx | 0.096m²(top view), 0.024m²(side view) | |||||||
| Mounting | Side Entry/Post Top, (Φ42~60mm pole), custom request | |||||||
| Others | ||||||||
| Product Size | 550*210*89mm/21.65*8.27*3.5" | |||||||
| Net Weight | 3.5KG/7.72lbs | |||||||
| Standard Accessories | None | |||||||
| Optional Accessories | 10kV/20kV SPD, breather vent, NEMA shocket, Photocell, Zhaga, PIR or Microwave sensor, M20 waterproof joint, CCT & Power adjustable optional | |||||||
Distribution diagram
ILG-配光图-1
ILG-配光图-2
