Compact Road & Street Lighting-ILB
10W-50W quality compact road & street lighting for Aisa market
Elevate street and road lighting with the AOK 10W-50W compact lighting solution with up to 165lm/W & IP66/IK10 ratings, engineered to meet the demands of the Asian market.
✔ EFFICACY: up to 165lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T3(80*160°)
✔ LIGHT CONTROL: Photocell, dimming
✔ LEDs: Side entry/Post top
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T3(80*160°)
✔ LIGHT CONTROL: Photocell, dimming
✔ LEDs: Side entry/Post top
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
ILB-产品详情页-1
Product Description
Dimensions
Downloads

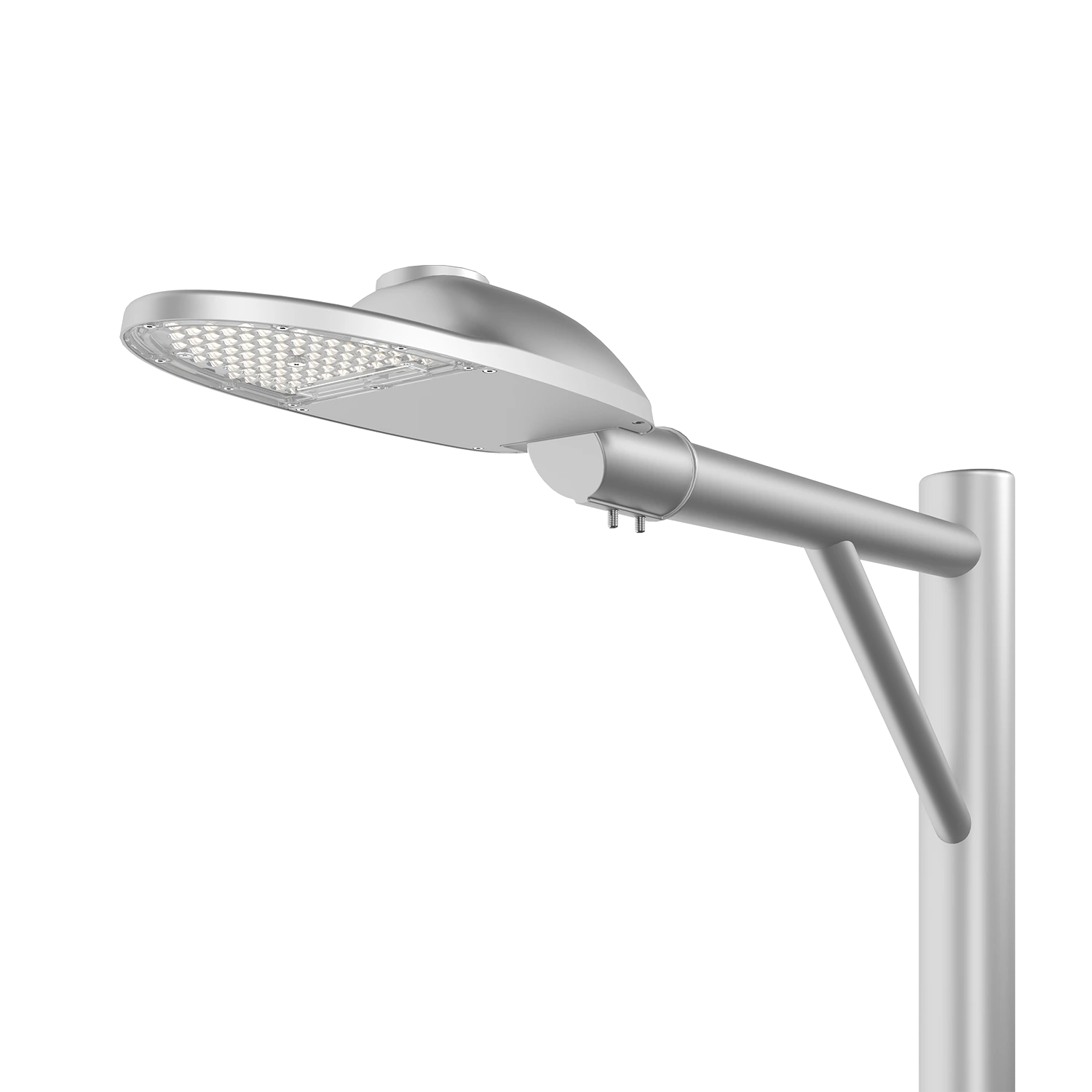

AOK Compact Road & Street Lighting Solution – Optimal Performance ILB series for the Asia Market.
Elevate your street and road lighting with the AOK ILB series 10W-50W compact lighting solution, engineered to meet the demands of the Asian market. This high-performance fixture delivers up to 165 lumens per watt, ensuring exceptional brightness while remaining energy-efficient. Its robust design, featuring IP66 and IK10 ratings, makes it a durable choice for a variety of applications.
Key Features
Exceptional Luminous Efficacy
Provides up to 165 lumens per watt, offering bright, clear illumination to enhance safety and visibility on streets and roads.
Compact and Versatile
The compact design facilitates easy installation in diverse settings, from urban streets to residential areas.
Durability Guaranteed
With an IP66 rating, this fixture is highly resistant to dust and water, ensuring reliable performance in all weather conditions.
Impact-Resistant
The IK10 rating offers robust protection against mechanical impacts, ensuring long-lasting durability and reduced maintenance.
Energy Efficient
The power consumption delivers high-quality lighting with minimal energy use, contributing to cost savings and environmental sustainability.
Enhanced Safety
Provides consistent, bright lighting to improve visibility and safety in various outdoor environments.
Self Clean Cover Design
Features a sleek, clean cover that not only enhances the aesthetic appeal but also helps maintain optimal light output by reducing dirt and debris accumulation.
Applications
✔ Urban streets and roadways.
✔ Public parks and plazas.
✔ Residential neighborhoods.
✔ Commercial areas.
Warranty
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
Certification/Listing
For detailed certificates please request.
Product Sheet & Installation Guide
Certificates & Reports
IES Files
Technical Parameter
| Power(W) | 10W | 20W | 30W | 40W | 50W | |
| Driver Brand | Inventronic / Sosen / Others | |||||
| Control Option | Surge Protective Device, Daylight Sensor Control, 1-10V Dimming | |||||
| Photometric Specifications | ||||||
| Luminous Flux (lm) (CRI 70Ra, 4000K, Std Dev ±5%) | T3-80*160° | 1650lm | 3100lm | 4500lm | 5880lm | 7100lm |
| Beam Angle | 80*160° (Type-III) | |||||
| Mechanical Specifications | ||||||
| SCx (EPA) | 0.0537m² (Topview), 0.0208m² (Sideview) | |||||
| Mounting | Side Entry / Post Top | |||||
| LEDs | ||||||
| LED Model | 3030 | |||||
| Lens | Polycarbonate | |||||
| Others | ||||||
| Product Size | 17.76*6.18*4.33 inches / 451*157*110mm | |||||
| Net Weight | 1.8KG/3.97 lbs | |||||
Distribution diagram
033
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
