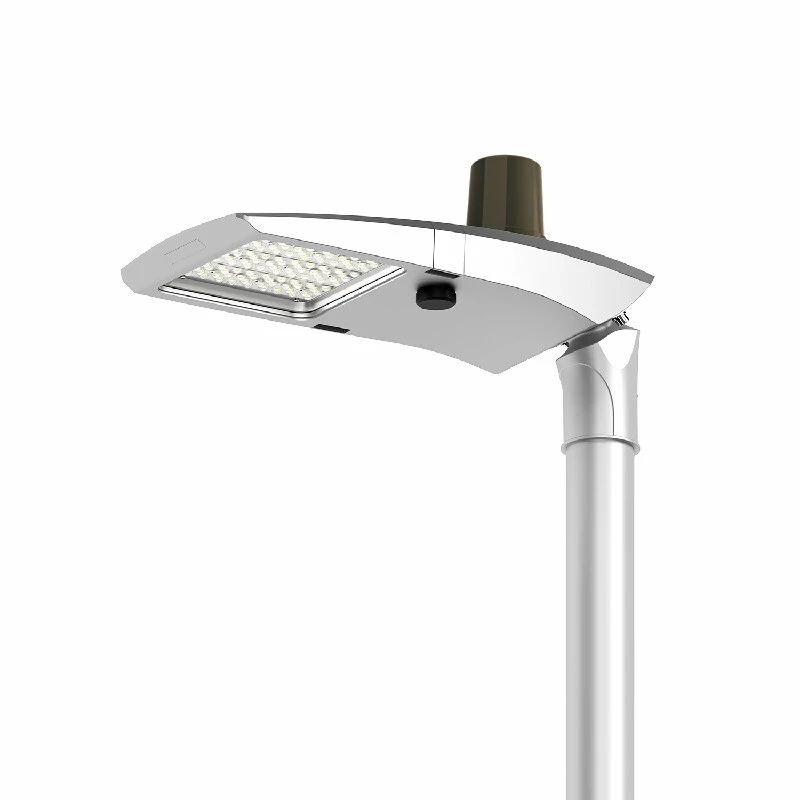

Tool-less LED Street Light with Zhaga Standard-ILE
Europe tool-less 20-100W street light with Zhaga standard eco-friendly
Eco-friendly durable Europe 20W-300W LED Street Light, Zhaga & NEMA standards. It features tool-less maintenance and quick component replacement, offering ease of use and reliability.
✔ EFFICACY: up to 165lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK08 with glass
✔ DISTRIBUTION: Type-II (85*150°, 70*155°, 75*150°, 110*155°, 100*160°) / Type III (100*160°, 80*150°, 90*150°, 100*145°, 120*160°) / Type IV (125*160°, 90*150°, 115*145°)
✔ LIGHT CONTROL: DALI-2, D4i,1-10V/ PWM / timer dimming, Nema, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK08 with glass
✔ DISTRIBUTION: Type-II (85*150°, 70*155°, 75*150°, 110*155°, 100*160°) / Type III (100*160°, 80*150°, 90*150°, 100*145°, 120*160°) / Type IV (125*160°, 90*150°, 115*145°)
✔ LIGHT CONTROL: DALI-2, D4i,1-10V/ PWM / timer dimming, Nema, Supporting receptacle of 3pin/7pin, photocell, Zigbee, Zhaga, Lora Lighting Controller
✔ LEDs: 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
ILE-产品详情页-1
ILE-产品详情页-2
ILE-产品详情页-3
ILE-产品详情页-4
Product Description
Dimensions
Downloads
Eco-friendly durable Europe 20W-120W LED Street Light, Zhaga & NEMA standards. It features tool-less maintenance and quick component replacement, offering ease of use and reliability.
AOK Tool-Less ILE-Series Highway & Roadway Street Lighting Solution:
Elevate your highway and roadway illumination with the AOK 20W-120W Tool-Less ILE-Series lighting solution, engineered to meet Zhaga and NEMA standards, especially for the European market. This high-performance fixture is designed for exceptional energy efficiency, featuring easy component replacement and recycling, and a carbon-reducing eco-friendly design.
Key Features:
Tool-Less Replacement
Modular design allows for easy component replacement and recycling without tools.
Outstanding Efficacy
Achieves up to 165 lumens per watt, providing bright, efficient lighting for highways and roadways.
Versatile LED Options
Compatible with LEDs such as 3030 and 5050, offering flexible lighting solutions.
Reliable Drivers
Equipped with top-tier drivers from Inventronics/Class 1, Sosen, Philips, OSRAM, or Moso.
Advanced Control Options
Includes DALI-2, D4i, 1-10V/PWM/timer dimming, NEMA, and presence detection sensors for tailored control.
Enhanced Surge Protection
Optional surge protection with 10kV or 20kV ratings to safeguard against electrical surges.
Exceptional Vibration Resistance
3G-rated for robustness, conforming to IEC 68-2-6 standards.
Self-Cleaning Housing
Maintains optical performance with minimal maintenance due to a self-cleaning design.
Superior Protection Ratings
IP66 for dust and water resistance and IK08 for impact resistance, meeting EN 60529 and EN 62262 standards.
Flexible Mounting Options
Side entry or post-top mounting compatible with Φ42~60mm and 76mm poles.
Long Lifespan
L70 rating exceeds 100,000 hours at 25°C for long-term performance.
Customizable Accessories
Options include lid support, circuit breaker, SPD 20KV, NEMA photoelectric control socket, photocell, Zhaga socket, and PIR or microwave sensors.
Applications
✔ Highways: Provides clear, bright illumination to enhance safety and visibility on major roads.
✔ Roadways: Ensures consistent and efficient lighting for both urban and rural roads.
✔ Public Areas: Ideal for parks, plazas, and other public spaces.
✔ Commercial Properties: Perfect for illuminating commercial areas and improving visibility for businesses.
Upgrade to the AOK Tool-Less ILE-Series for a high-efficiency, durable, and eco-friendly lighting solution that meets your street lighting needs.
Warranty
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
Certification/Listing
For detailed certificates please request
Product Sheet & Installation Guide
Certificates & Reports
IES Files
ZIP
ZIP
ZIP
ZIP
Technical Parameter
| Power | 20W | 30W | 40W | 50W | 60W | 70W | 80W | 90W | 100W | 110W | 120W | |
| Driver | 20-110W: Inventronics、Sosen/Class 1, (Sosen 、 Philips、OSRAM、Moso、uPowerTek)/Class 1、 Class 2 120W: Inventronics、Sosen/Class 1, (Moso)/Class 1、 Class 2 | |||||||||||
| Control option | DALI-2, D4i,1-10V/ PWM / timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. | |||||||||||
| Photometric Data | ||||||||||||
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) with 3030 |
T201-12in1 (85*150°) | 3000lm | 4230lm | 6000lm | 7250lm | 8460lm | 10290lm | 11520lm | 12690lm | 13500lm | 14630lm | 15600lm |
| T211-12in1 (110*155°) | 3000lm | 4230lm | 6000lm | 7250lm | 8460lm | 10290lm | 11520lm | 12690lm | 13500lm | 14630lm | 15600lm | |
| T301-12in1 (100*160°) | 2900lm | 4080lm | 5800lm | 7000lm | 8160lm | 9940lm | 11120lm | 12240lm | 13000lm | 14080lm | 15000lm | |
| T311-12in1 (90*150°) | 3000lm | 4230lm | 6000lm | 7250lm | 8460lm | 10290lm | 11520lm | 12690lm | 13500lm | 14630lm | 15600lm | |
| T411-12in1 (115*145°) | 3000lm | 4230lm | 6000lm | 7250lm | 8460lm | 10290lm | 11520lm | 12690lm | 13500lm | 14630lm | 15600lm | |
| T221-16in1 (75*150°) | 3080lm | 4440lm | 6160lm | 7550lm | 8880lm | 10780lm | 12080lm | 13320lm | 14500lm | 15730lm | 16800lm | |
| T321-16in1 (100*145°) | 3080lm | 4440lm | 6160lm | 7550lm | 8880lm | 10780lm | 12080lm | 13320lm | 14500lm | 15730lm | 16800lm | |
| T231-24in1 (100*160°) | 3120lm | 4560lm | 6240lm | 7700lm | 9120lm | 11060lm | 12480lm | 13860lm | 15200lm | 16500lm | 17760lm | |
| T331-24in1 (120*160°) | 3120lm | 4560lm | 6240lm | 7700lm | 9120lm | 11060lm | 12480lm | 13860lm | 15200lm | 16500lm | 17760lm | |
| T401-24in1 (125*160°) | 3120lm | 4560lm | 6240lm | 7700lm | 9120lm | 11060lm | 12480lm | 13860lm | 15200lm | 16500lm | 17760lm | |
| T231-24in1-Pro (100*160°) | 3240lm | 4740lm | 6480lm | 8000lm | 9480lm | 11480lm | 12960lm | 14400lm | 15800lm | 17160lm | 18480lm | |
| T331-24in1-Pro (120*160°) | 3240lm | 4740lm | 6480lm | 8000lm | 9480lm | 11480lm | 12960lm | 14400lm | 15800lm | 17160lm | 18480lm | |
| T401-24in1-Pro (125*160°) | 3240lm | 4740lm | 6480lm | 8000lm | 9480lm | 11480lm | 12960lm | 14400lm | 15800lm | 17160lm | 18480lm | |
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) with 5050 |
5050-T202 (70*155°) | 3200lm | 4620lm | 6400lm | 7850lm | 9240lm | 10990lm | 12320lm | 13680lm | 15000lm | 13680lm | 15000lm |
| 5050-T302 (80*150°) | 3200lm | 4620lm | 6400lm | 7850lm | 9240lm | 10990lm | 12320lm | 13680lm | 15000lm | 13680lm | 15000lm | |
| 5050-T402 (90*150°) | 3200lm | 4620lm | 6400lm | 7850lm | 9240lm | 10990lm | 12320lm | 13680lm | 15000lm | 13680lm | 15000lm | |
| Beam angle | Type-II (85*150°, 70*155°, 75*150°, 110*155°, 100*160°) / Type III (100*160°, 80*150°, 90*150°, 100*145°, 120*160°) / Type IV (125*160°, 90*150°, 115*145°) | |||||||||||
| LED model | Lumileds 3030, 5050 / Seoul3030, 5050 | |||||||||||
| Lens | Polycarbonate+tempered glass(4 mm thick) | |||||||||||
| Mechanical Data | ||||||||||||
| SCx | 0.0914m² (Top view), 0.029m² (side view) | |||||||||||
| Mounting | Side Entry / Post Top | |||||||||||
| Others | ||||||||||||
| Product Size | 23.7*9.65*3.9 inches / 602*245*99mm | |||||||||||
| Net Weight | 5.1KG | |||||||||||
| Standard Accessories | Standard SPD 10kV (EU) | |||||||||||
| Optional Accessories | Lid support, circuit breaker, SPD 20KV, Nema photoelectric control socket, photocell, Zhaga socket, PIR or Microwave sensor. | |||||||||||
Distribution diagram
ILE-配光图-1
ILE-配光图-2
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
