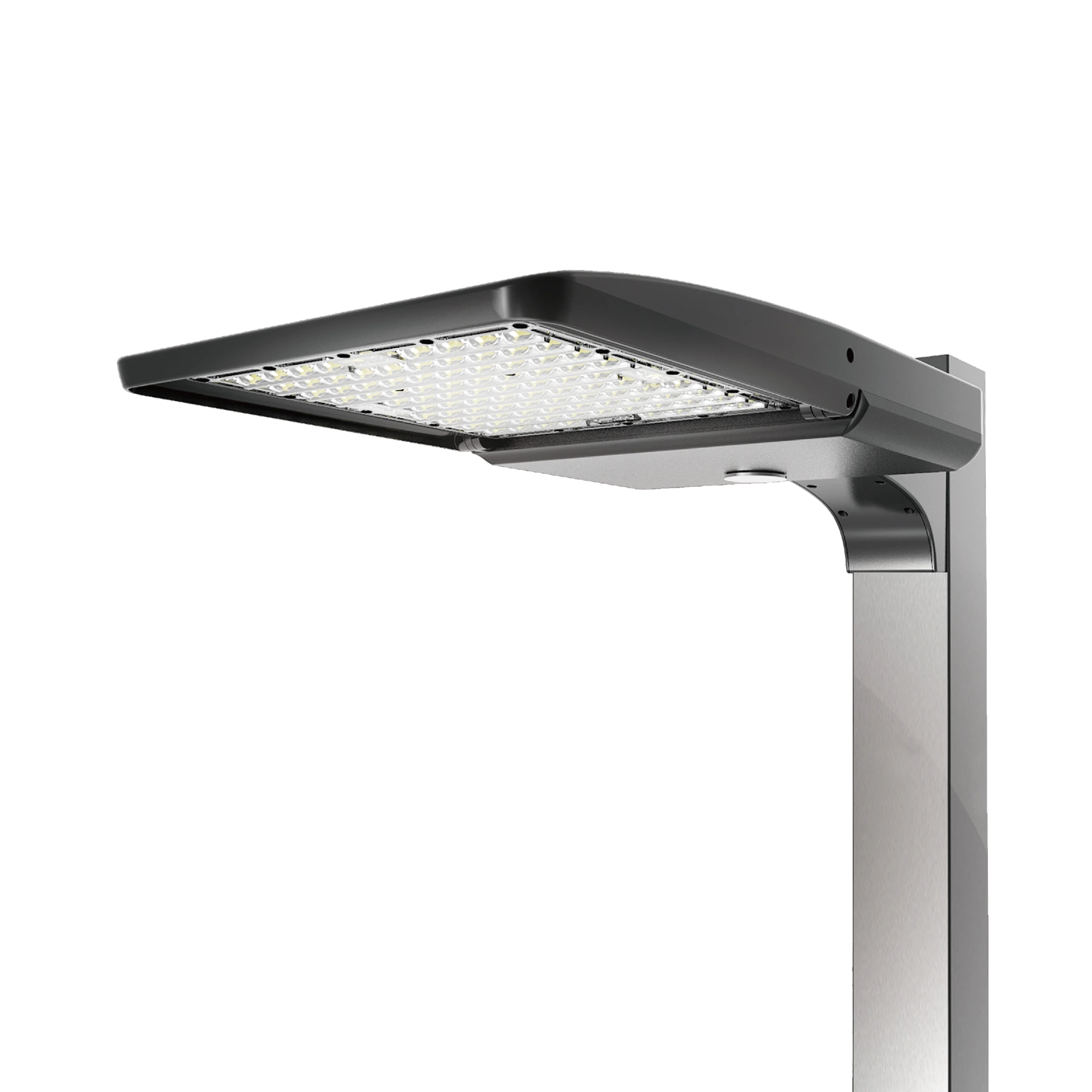

Professional Parking-lot Shoebox Light-OT
Upgrade 75-420W area light-OT professional parking-lot light shoebox
Upgrade outdoor 75-420W area light with professional LED parking-lot light shoebox AOK OT series, achieving up to 175lm/W high-efficiency and quality luminaire systems
✔ LUMEN OUTPUT: 11250~12900lm
✔ CCT & CRI: 3000K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T2, T3, T4, T5
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CERTIFICATION: UL/cUL/FCC/CE/ENEC/SAA/RoHS,for other certificates please request
✔ CCT & CRI: 3000K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION: T2, T3, T4, T5
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CERTIFICATION: UL/cUL/FCC/CE/ENEC/SAA/RoHS,for other certificates please request
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
OT-产品详情页-2
OT-产品详情页-1
Product Description
Dimensions
Downloads
Enhance your commercial or industrial lighting with AOK 75W parking lot and area lighting solutions. As a leading LED lighting provider, AOK offers the OT Series, which includes area lights, shoebox lights, street lights, and LED sports lights. Delivering up to 175lm/W, these fixtures offer bright illumination, cool operating temperatures, and extended lifespans. The die-cast aluminum alloy housing with external fins ensures superior heat dissipation and corrosion resistance. Ideal for parking lots or tennis courts, the OT Series provides durable, energy-efficient, and high-quality lighting solutions.
Features
Our fixtures are expertly designed for parking lots, streets, and tennis courts, featuring professional light distribution and anti-glare technology. With a BUG Rating of U=0, they minimize light pollution while maximizing illumination efficiency. The rotatable optics offer flexible light distribution, and an optional low-glare shield further reduces glare. These features make the OT Series perfect for achieving high-quality, efficient lighting in any outdoor space.
Electrical Specifications
✔ Standard universal voltage (100-277V AC), with 50/60Hz; 347-480V option
✔ L90B10 rating: Over 100,000 hours at 25°C
✔ Dimming options: 0-10V, PWM, Timer with 3 modes, Dim-to-Off with standby power ≤0.5W
✔ High-efficiency driver: Up to 93.5%, minimum 87.5%
✔ Surge protection: 6kV line-line, 10kV line-earth
✔ Options available for photocell, PIR sensor, and 20kV SPD
✔ Operating temperature range: -40°C to 50°C (-40°F to 122°F)
✔ L90B10 rating: Over 100,000 hours at 25°C
✔ Dimming options: 0-10V, PWM, Timer with 3 modes, Dim-to-Off with standby power ≤0.5W
✔ High-efficiency driver: Up to 93.5%, minimum 87.5%
✔ Surge protection: 6kV line-line, 10kV line-earth
✔ Options available for photocell, PIR sensor, and 20kV SPD
✔ Operating temperature range: -40°C to 50°C (-40°F to 122°F)
Construction
✔ Efficient heat dissipation layer
✔ LED light source on PCB board
✔ Die-cast aluminum main housing, IP66 rated
✔ Space for 5/7-pin receptacle, compatible with photocell sensors and smart systems
✔ Tool-free access panel for driver maintenance
✔ Rotatable optical-grade PC lenses available in Type III/IV/V
✔ Top-level 1-10V dimmable driver, with 347-480V option
✔ Tool-free driver access panel, compatible with Watt Stopper FSP sensor
✔ Built-in surge protection device
✔ Bracket access panel for wiring
✔ Exchangeable brackets for round/square poles, with optional yoke and trunnion brackets
✔ LED light source on PCB board
✔ Die-cast aluminum main housing, IP66 rated
✔ Space for 5/7-pin receptacle, compatible with photocell sensors and smart systems
✔ Tool-free access panel for driver maintenance
✔ Rotatable optical-grade PC lenses available in Type III/IV/V
✔ Top-level 1-10V dimmable driver, with 347-480V option
✔ Tool-free driver access panel, compatible with Watt Stopper FSP sensor
✔ Built-in surge protection device
✔ Bracket access panel for wiring
✔ Exchangeable brackets for round/square poles, with optional yoke and trunnion brackets
Product Sheet & Installation Guide
Reports
IES
ZIP
Technical Parameter
Parking lot lights
Tennis court lights
| Power(W) | 200 W | 230 W | 300 W | 420 W | |
| Photometric Data | |||||
| Luminous flux (lm) (LUMILEDS,Std. Dev. ±5%)@4000K Ra70 |
T301-85*145° | 28058 lm | 31123 lm | 37868 lm | -- |
| T302-80*155° | 32800 lm | 36908 lm | 46500 lm | 61320 lm | |
| T401-70*125° | 27200 lm | 30130 lm | 36900 lm | -- | |
| T402-90*150° | 32400 lm | 36340 lm | 45900 lm | 60480 lm | |
| T501-150° | 27916 lm | 31050 lm | 37800 lm | -- | |
| T502-160° | 33000 lm | 37030 lm | 46800 lm | 61740 lm | |
| Luminous flux (lm) (Seoul,Std. Dev. ±5%)@4000K Ra70 |
T302-80*155° | 33400 lm | 37490 lm | 47400 lm | 62580 lm |
| T402-90*150° | 33000 lm | 37030 lm | 46800 lm | 61740 lm | |
| T502-160° | 33600 lm | 37720 lm | 47700 lm | 63000 lm | |
| Beam angle | T301(85*145°)/T302(80*155°)/T401(70*125°)/T402(90*150°)/T501(150°)/T502(160°)/T512(150°) | ||||
| LED model | Lumileds 3030/Lumileds 5050/Seoul 5050 | ||||
| Lens | Polycarbonate (Better impact resistance than glass) | ||||
| Mechanical Data | |||||
| SCx | Top view: 0.179268m²; Front-side: 0.0196 m²; Side view: 0.03342 m² | Top view: 0.201256m²; Front-side: 0.0269 m²; Side view: 0.04686 m² | |||
| Mounting | Slip fitter(Φ40/60/76mm)/Arm mount/Yoke mount/Slide & lock/Square pole/Round pole/Trunnion | ||||
| Dimensions | |||||
| Product size | 600*410*185mm/ 23.6*16.1*7.3 in | 600*410*185mm/ 23.6*16.1*7.3 in | 650*423*380mm/ 25.6*16.7*15.0 in | 650*440*390mm/ 25.6*16.7*15.4 in | |
| Net weight(±10%) | 5.6kg / 12.3 lbs | 5.6kg / 12.3 lbs | 8.9kg / 19.6 lbs | 9.6kg / 21.16 lbs | |
| Power(W) | 230 W | 300 W | 420 W | |
| Luminous flux (lm) (LUMILEDS,Std. Dev. ±5%)@4000K Ra70 |
T301-85*145° | 31123 lm | 37868 lm | -- |
| T302-80*155° | 36908 lm | 45817 lm | 59512 lm | |
| T401-70*125° | 31121 lm | 39157 lm | -- | |
| T402-90*150° | 36911 lm | 44763 lm | 58579 lm | |
| T501-150° | 30492 lm | 38953 lm | -- | |
| T502-160° | 36052 lm | 46479 lm | 60867 lm | |
| Luminous flux (lm) (Seoul,Std. Dev. ±5%)@4000K Ra70 |
T302-80*155° | 39156 lm | 50167 lm | 65599 lm |
| T402-90*150° | 39185 lm | 48053 lm | 63203 lm | |
| T502-160° | 39569 lm | 51087 lm | 67305 lm | |
| Beam angle | T301(85*145°)/T302(80*155°)/T312(60*120°)/T322(50*80°)/T401(70*125°)/T402(90*150°)/T501(150°)/T502(160°)/T512(150°) | |||
| LED model | Lumileds 3030/Lumileds 5050/Seoul 5050 | |||
| Lens | Polycarbonate (Better impact resistance than glass) | |||
| Mechanical Data | ||||
| SCx | Front: 0.179268m²; Front-side: 0.0196 m²; Side: 0.03342 m² | Front: 0.201256m²; Front-side: 0.0269 m²; Side: 0.04686 m² | ||
| Mounting | Slip fitter(Φ40/60/76mm)/Arm mount/Yoke mount/Slide & lock/Square pole/Round pole/Trunnion | |||
| Others | ||||
| Product size | 23.6*16.1*7.3 inches / 600*410*185 mm | 25.6*16.7*15.0 inches / 650*423*380 mm | 25.6*17.3*15.4 inches / 650*440*390 mm | |
| Net weight(±10%) | 5.6kg | 8.9kg | 9.6kg | |
Distribution diagram
OT-配光图-1
OT-配光图-2
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
