Tool-less & CCT Power Turnable Area Light-PLB
100-300W Tool-less area light LED area light CCT Power turnable

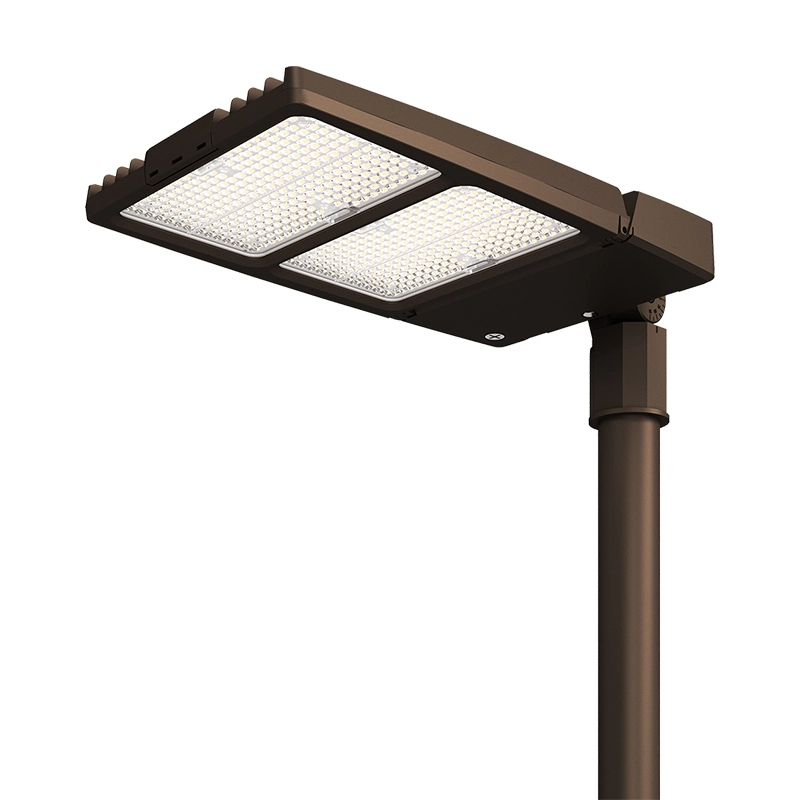

100-300W tool-less area light is a high-quality LED parking lot shoebox with lens replacement. The CCT & Power adjustable optional solution allows for SKUs reduction
✔ LUMEN OUTPUT: Up to 200lm/W
✔ CCT & CRI: 2700K-6500K (3000K/4000K/5000K adjustable) Ra70, Ra80
✔ POWER TURNABLE: (60W / 75W / 100W)
✔ IP & IK RATING: IP66/IK10, according to standard EN 60529 and EN 62262
✔ DISTRIBUTION: T401(110*155°),T402(90°x150°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CERTIFICATION: UL, DLC5.1, FCC, for other certificates please request
✔ CCT & CRI: 2700K-6500K (3000K/4000K/5000K adjustable) Ra70, Ra80
✔ POWER TURNABLE: (60W / 75W / 100W)
✔ IP & IK RATING: IP66/IK10, according to standard EN 60529 and EN 62262
✔ DISTRIBUTION: T401(110*155°),T402(90°x150°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CERTIFICATION: UL, DLC5.1, FCC, for other certificates please request
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
PLB-产品详情页-1
PLB-产品详情页-2
PLB-产品详情页-3
Product Description
Dimensions
Downloads
Tool-less Turnable Area Light-AOK PLB Series Smart Lighting. Flexible Design. Built for Performance.
The 100W tool-less area light AOK PLB series is a premium adjustable LED parking lot light engineered for commercial and industrial outdoor spaces such as parking lots, streets, and pedestrian areas. Designed with ease of maintenance and SKU reduction in mind, the PLB series supports tool-less lens replacement and CCT & power adjustability, offering exceptional versatility and energy efficiency. With outstanding heat dissipation, full-cutoff lighting, and long-lasting LED performance, the PLB series meets modern demands for sustainability, precision, and ease of use—all in one fixture.
Key Features:
Tool-less Lens Replacement
Allows for quick maintenance and flexible light distribution adjustments, helping reduce SKUs and simplify inventory.
Adjustable CCT & Wattage
Customizable options include: (60W / 75W / 100W)(75W / 100W / 150W)(115W / 150W / 180W)(180W / 200W / 240W)(200W / 240W / 300W)
Superior Thermal Management
Thermally isolated light engine ensures efficient heat dissipation for extended performance and durability in demanding environments.
Precision Optics
Available in IESNA Type III, IV, and V beam patterns via micro-lens systems, delivering full-cutoff lighting with no uplight pollution.
Zero Uplight Design
0% lumens above 90° (BUG Rating U=0), providing even illumination with reduced glare for visual comfort and environmental compliance.
Rugged Protection
IP66-rated optical compartment ensures strong resistance to dust, water, and harsh weather.
Future-Ready
Pre-designed space reserved for smart sensor integration (occupancy or daylight sensors).
Ideal Applications
✔ Urban and residential roadways
Allows for quick maintenance and flexible light distribution adjustments, helping reduce SKUs and simplify inventory.
✔ Pedestrian and bike pathways
Customizable options include: (60W / 75W / 100W)(75W / 100W / 150W)(115W / 150W / 180W)(180W / 200W / 240W)(200W / 240W / 300W)
✔ Railway and metro stations
Thermally isolated light engine ensures efficient heat dissipation for extended performance and durability in demanding environments.
✔ Public squares and open spaces
Available in IESNA Type III, IV, and V beam patterns via micro-lens systems, delivering full-cutoff lighting with no uplight pollution.
✔ Parking areas and garages
0% lumens above 90° (BUG Rating U=0), providing even illumination with reduced glare for visual comfort and environmental compliance.
✔ Bridges, highways, and main roads
IP66-rated optical compartment ensures strong resistance to dust, water, and harsh weather.
Mounting Options
Slip Fitter: Φ40 / 60 / 76mm; Arm Mount; Slide & Lock Bracket; Square or Round Pole Mount; Trunnion Mount
Product Sheet & Installation Guide
PLB IES
Technical Parameter
| Model | AOK-PLB100W | AOK-PLB150W | AOK-PLB180W | AOK-PLB240W | AOK-PLB300W | |
| 3-in-1 Watt Seletable | 60-75-100W | 75-100-150W | 115-150-180W | 180-200-240W | 200-240-300W | |
| Control Option | Driver includes wiring for 0-10V dimming systems. Dim as low as 10%. | |||||
| Photometric Specifications | ||||||
| Luminous Flux(lm,Std Dev ±5%) @2835,CRI 70Ra, 4000K |
9600-16000lm | 12000-22500lm | 17500-27000lm | 27000-36000lm | 30000-45000lm | |
| Luminous Flux(lm,Std Dev ±5%) @5050,CRI 70Ra, 4000K |
12000-19500lm | 14850-28800lm | 22425-33840lm | 35000-46320lm | 38000-57000lm | |
| LED Model | 2835, 5050 optional | |||||
| Lens | Polycarbonate | |||||
| Beam Angle | T401(110*155°),T402(90°x150°) | |||||
| Mechanical Specifications | ||||||
| Mounting | Slip fitter(Φ40/60/76mm)/Arm mount/Slide & lock/Square pole/Round pole/Trunnion | |||||
| Package Info | ||||||
| Product Size | 20.75*11.97*2.44 inches / 527*304*62mm |
27.4*12.44*2.44 inches / 696*316*62mm |
||||
| Net Weight | 3.2KG | 4.0KG | ||||
Distribution diagram
PLB-配光图-1
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
