Large Power All-in-one Solar Street Light-SAB
✔ BATTERY: Li-ion Battery
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°)
✔ CONTROLLER: MPPT/PWM Optional, custom IOT or remote control on request
main features

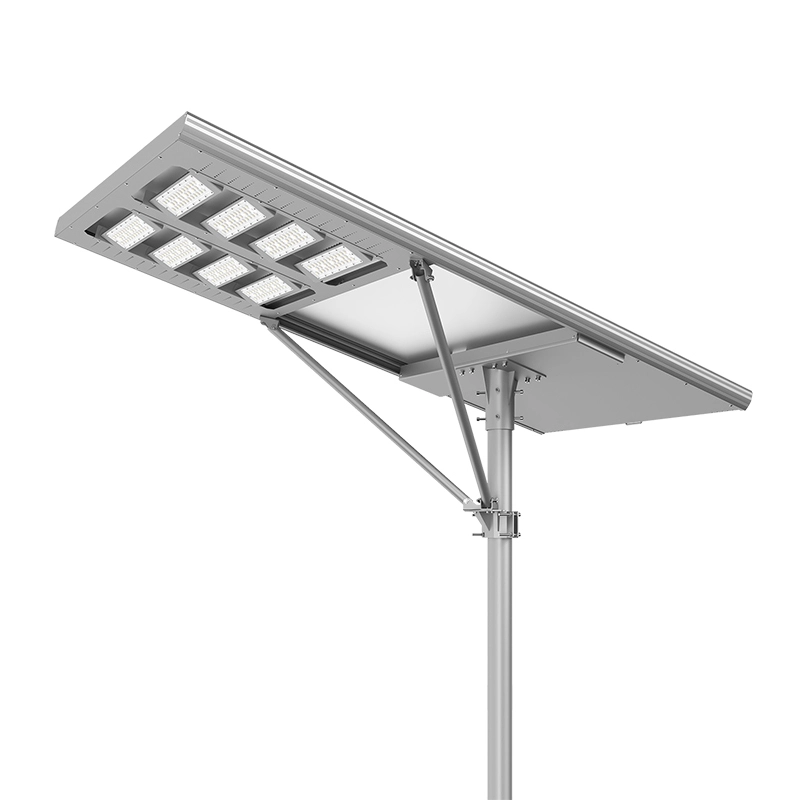

30w big power all-in-one LED solar street light – sab series
Revolutionizing Solar Street Lighting with Power, Simplicity & Performance
The SAB Series represents the next evolution in all-in-one solar street lighting—designed for high output, simple installation, and dependable off-grid performance. Engineered with a high-capacity battery system and an integrated design, this smart solar street light eliminates the need for complex wiring while delivering robust, eco-friendly illumination for streets, parks, pathways, and remote locations.
Its compact, intelligent configuration combines premium monocrystalline solar panels, a powerful Li-ion battery, and a smart MPPT controller, ensuring exceptional brightness, minimal maintenance, and resilience in harsh environments.
Key Features:
Available in 30W to 300W configurations.
Equipped with LiFePO₄ batteries for over 2000 charge cycles, combining safety, space efficiency, and durability.
Bifacial panel option available for increased solar conversion
Streamlined design for wind resistance and longevity.
IP65-rated optical system for protection against dust and water.
Adjustable brightness and intelligent energy-saving mode.
Dual battery protection system with 0V charging support.
Warranty:
Standard 3–5 year limited warranty
For extended coverage and specific terms, please get in touch with our sales team.
Product Sheet & Installation Guide
IES
Technical Parameter
|
Power |
30W |
40W |
50W |
60W |
80W |
100W |
120W |
150W |
200W |
300W |
|
Control Option |
Photocell sensor, Timing, dimming, intelligent power saving, microwave sensor or PIR sensor. |
|||||||||
|
Work Mode |
4H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10% |
|||||||||
|
Photometric Data |
||||||||||
|
Luminous flux (lm, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra |
6000lm |
8000lm |
10000lm |
12000lm |
16000lm |
20000lm |
24000lm |
30000lm |
40000lm |
60000lm |
|
Beam Angle |
T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) |
|||||||||
|
Mechanical Data |
||||||||||
|
Housing |
Alluminum+SPCC |
|||||||||
|
Mounting |
Post Top |
|||||||||
|
Configuration Data |
||||||||||
|
Solar Panel Voltage(W) |
18V 40W |
18V 60W |
18V 70W |
18V 80W |
18V 100W |
36V 120W |
36V 150W |
36V 200W |
36V 240W |
36V 360W |
|
Li-ion Battery(WH) |
192WH |
384WH |
384WH |
576WH |
576WH |
768WH |
1152WH |
1152WH |
1536WH |
2304WH |
|
Maximum Autonomy |
Operate 2~3 rainy days under intelligent model. |
|||||||||
|
Others |
||||||||||
|
Product Size |
625*378*62 |
885*378*62 |
1055*378*62 |
1170*378*62 |
1061*543*62 |
1146*543*62 |
1392*543*62 |
1456*778*62 |
1616*778*62 |
1846*968*62 |
|
Net Weight |
12 kg / |
15.7 kg / |
17.2 kg / |
18.9 kg / |
22.8 kg / |
26.4 kg / |
31.5 kg / |
44.3 kg / |
49.7 kg / |
65.1 kg / |
|
SCx (EPA) |
to be updated |
|||||||||
