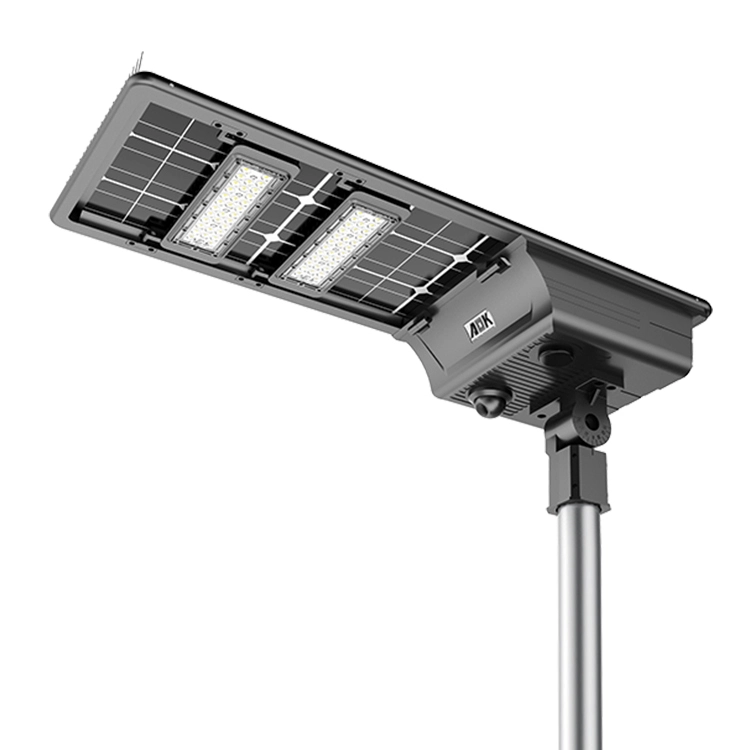

All-in-One Solar Street Light with Bifacial Solar Panel-SE
✔ BATTERY: Li-ion Battery
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T2, T3, T4, T5
✔ CONTROLLER: PWM / MPPT, IoT supported
✔ WARRANTY: 3 years standard, 5 years optional
✔ CERTIFICATION: CE/FCC/RoHS, For other certificates please request
main features
Searching for a top-rated 10W all-in-one solar street light with a professional design? The AOK SE Series all-in-one solar street light is the ideal choice. This advanced solar street light features a rotatable LED module and a high-performance bifacial solar panel, offering remarkable efficiency of up to 200lm/W. Its sleek design integrates a PIR/microwave motion sensor and a smart controller for added convenience. The bifacial solar panel is perfect for remote areas and places without electricity, while the deep cycle battery ensures reliable performance with over 2000 charge and discharge cycles. Even during rainy conditions, the intelligent mode provides 5-7 days of operation. Choose the AOK SE Series for a dependable and energy-efficient outdoor lighting solution.
Key Features:
LED CHIP
Equipped with Seoul 5050 LED chips, the AOK SE Series offers superior lighting performance. With single-lumen efficacy over 200lm/W and a robust aluminum lamp base with a sealed lens, it ensures high brightness with minimal fading. The UV-protected, shock-resistant PC lenses and optimized light distribution provide a uniform and expansive lighting area.
● Intelligent APP Control, IoT Management, AC & DC hybrid grid-powered solution
● Area Lighting
● Perimeter Lighting
● Additional certificates available upon request
Smart Lighting Control System
The system allows for preset lighting modes based on time of day and traffic flow. It can automatically turn lamps on or off, adjust switching times, and modify illumination levels to optimize energy savings and reduce consumption.
Product Sheet & Installation Guide
Certificates & Reports
IES data
Technical Parameter
|
Power(W) |
10W |
20W |
30W |
40W |
50W |
60W |
|
Control Option |
Photocell sensor, timing, dimming, intelligent power saving, microwave sensor. 4G, Zigbee, Smart Lighting Control optional. |
|||||
|
Control System |
PWM / MPPT / complementary solution, custom IOT and remote control on request |
|||||
|
Photometric Data |
||||||
|
Luminous flux (lm, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra |
2100lm |
4200lm |
6150lm |
8000lm |
10250lm |
12000lm |
|
Beam angle |
T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) |
|||||
|
Mechanical Data |
||||||
|
Housing |
Heavy-duty die-cast aluminum (EN AC-46100) |
|||||
|
Mounting |
Universal/Wall mount/Round pole/Square pole |
|||||
|
Configuration Data |
||||||
|
Solar Panel (±5%) |
17V/35W |
19V/45W |
19V/55W |
19V/65W |
17V/80W |
19V/90W |
|
Li-ion Battery (±5%) |
153.6WH |
192WH |
307.2WH |
384.0WH |
576WH |
576WH |
|
Maximum Autonomy |
Operate 5~7 rainy days under intelligent mode |
|||||
|
Others |
||||||
|
Product Size |
594*365*248mm / |
754*365*248mm / |
910*365*248mm / |
1103*365*248mm / |
1263*365*248mm / |
1418*365*248mm / |
|
Net Weight |
11.49kg / 25.33lbs |
12.86kg / 28.35lbs |
14.89kg / 32.83lbs |
16.5kg / 36.38lbs |
17.61kg / 38.82lbs |
19.66kg / 43.34lbs |
|
SCx (EPA) |
Front: 0.3465 m²; |
Front: 0.3465 m²; |
Front: 0.4143 m²; |
Front: 0.4831 m²; |
Front: 0.5537 m²; |
Front: 0.6215 m²; |
Distribution diagram
