Plug & Play LED Solar Street Light-SLB

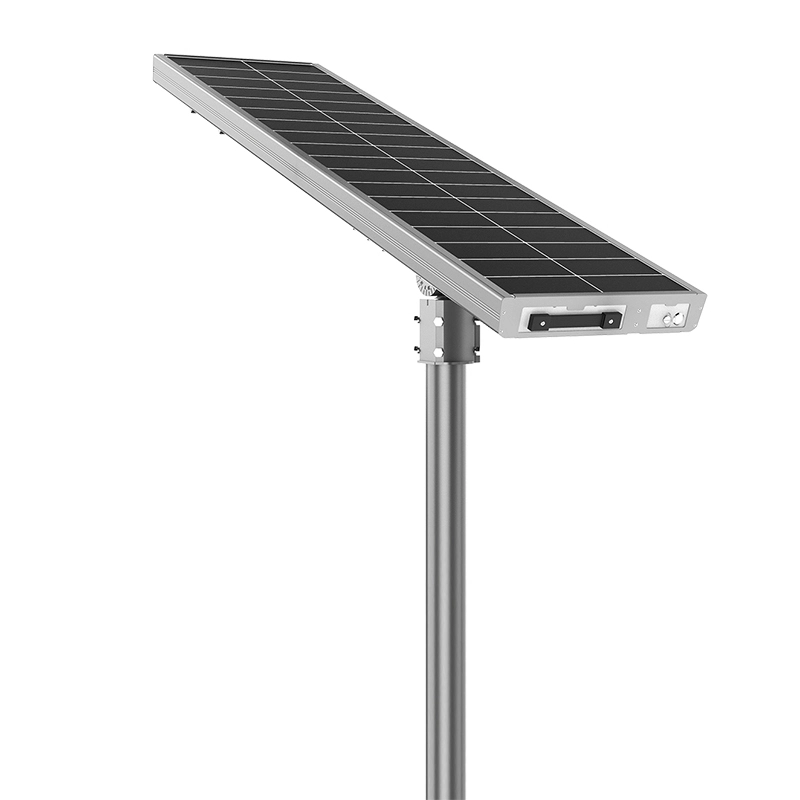

Commercial 40W-100W all in one solar street lights plug & play
Introducing the New Generation commercial 40w-100w all in one Solar Street Light Plug & Play Connection: Easy setup, ideal for streets, parks, and remote areas. Eco-friendly and reliable.
✔ LUMEN OUTPUT: Up to 200lm/W
✔ BATTERY: Li-ion Battery
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T203(65*150°) / T212(75*165°) / T304(75*160°) / T402(80*150°) / T502(150*150°)
✔ CONTROLLER: Induction dimmer, remote controller supported
✔ BATTERY: Li-ion Battery
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T203(65*150°) / T212(75*165°) / T304(75*160°) / T402(80*150°) / T502(150*150°)
✔ CONTROLLER: Induction dimmer, remote controller supported
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
SLB-产品详情页-1
SLB-产品详情页-2
Product Description
Dimensions
Downloads
All in one LED solar street light product overview
Introducing the New Generation Commercial 40W All in One Solar Street Lights Plug & Play Connection, a revolutionary lighting solution designed for seamless installation and maximum efficiency. This advanced solar street light features a user-friendly Plug & Play connection system, making it incredibly easy to set up and operate without the need for complex wiring or technical expertise. Ideal for streets, pathways, parks, and remote areas, this solar-powered light harnesses the sun's energy to provide reliable and eco-friendly illumination.
Equipped with high-efficiency solar panels, a powerful Li-ion battery, and smart control options, the Plug & Play Connect Solar Street Light ensures consistent performance and long-lasting brightness. Its durable construction is built to withstand harsh weather conditions, while the integrated design allows for quick and hassle-free maintenance. Experience the convenience and sustainability of the next generation in solar street lighting with this innovative Plug & Play solution.
Key Features:
✔ System efficacy up to 200lm/W, from 20W to 100W
Designed for easy battery renewal every 7 years.
✔ Aluminum fixture housing for durability.
Unique technology to prevent theft.
✔ Utilizing LiFePO4 batteries, providing over 2000 cycles of charge and discharge, ensures safety, compact size, and extended lifespan.
10 watts equivalent to at least 20 watts of other lights.
✔ MPPT smart controller, operates continuously for 2-3 rainy days under intelligent mode.
Increases overall conversion efficiency by 30%.
✔ UV stabilized polyester powder paint finish resists corrosion.
Ensures optimal solar panel angle and easy installation.
✔ Mounting options include Post Top.
Suitable for light poles, wall surfaces, and more.
Wide Power Range
✔ Streamlined design minimizes wind resistance.
✔ Optical systems maintain an IP65 rating.
Adaptable to different road conditions with no light wastage.
✔ ULOR=0% eliminates up-light pollution.
✔ Monocrystalline silicon solar panel, bifacial solar panel optional.
✔ Utilizing LiFePO4 batteries, providing over 2000 cycles of charge and discharge, ensures safety, compact size, and extended lifespan.
10 watts equivalent to at least 20 watts of other lights.
✔ Induction dimmer intelligent controller with optional presence detection sensor. Features an energy-saving mode with adjustable levels to extend lighting duration and automatically adjust brightness. Dual battery protection supports 0V charging.
Warranty
3~5 Year Limited Warranty. Please consult with our sales for detailed agreement.
SLB-尺寸图-(40W) 拷贝
SLB-尺寸图-(50W) 拷贝
SLB-尺寸图-(60W) 拷贝
SLB-尺寸图-(80W) 拷贝
SLB-尺寸图-(100W) 拷贝
Product Sheet & Installation Guide
Certificates & Reports
IES data
Technical Parameter
| Power(w) | 75W | 100W | 150W | 200W | 230W | |
| Control option | Driver includes wiring for 0-10V dimming systems. Dim as low as 10%. | |||||
| Photometric Data | ||||||
| Luminous flux(lm, Std Dev ±5%) @CRI 70Ra, 5000K-2835-T301 | 11250lm | 15000lm | 21750lm | 30000lm | 33350lm | |
| LED model | 2835 ,3030, 5050 | 2835 ,3030 | ||||
| Beam angle | T301 (80*150°)/T302 (80*155°)/T402 (80*150°)/ T501 (155*155°)/T502 (160*160°) |
T301 (70*150°) | ||||
| Mechanical Data | ||||||
| EPA(SCx) -without bracket | Side: 1.86ft²(0.1728m²); Top: 11.90ft²(1.1055m²) | Side: 2.31ft²(0.2144m²);Top:16.97ft²(1.5764m²) | ||||
| Mounting | Slip fitter(Φ40/60/76mm)/Arm mount/Yoke mount/Slide & lock/Square pole/Round pole/Trunnion | |||||
| Other Data | ||||||
| Product Size | A-Slipfitter | L573.2*W256*H79.2mm /22.57*10.08*3.12 inches | L668.5*W295*H79.4mm /26.32*11.61*3.13 inches | |||
| B-Adjustable Arm | L590*W256*H159.3mm /23.23*10.08*6.27 inches | L685.3*W295*H159.5mm / 26.98*11.61*6.28inches | ||||
| C-Yoke Mount | L443.7*W256*H59.2mm /17.47*10.08*2.33 inches | L540*W295*H60.2mm /21.26*11.61*2.37 inches | ||||
| D-Slide Lock Mount | L549.3*W256*H162.5mm /21.62*10.08*6.4 inches | L644.6*W295*H162.7mm / 25.38*11.61*6.41 inches | ||||
| E-Square Pole | L558.3*W256*H150mm /21.98*10.08*5.91 inches | L653.6*W295*H150mm /25.73*11.61*5.91 inches | ||||
| F-Round Pole | L580.7*W256*H150mm /22.86*10.08*5.91 inches | L676.1*W295*H150mm /26.62*11.61*5.91 inches | ||||
| G-Trunnion Mount | L567.3*W256*H70mm /22.33*10.08*2.76 inches | L662.6*W295*H70mm /26.09*11.61*2.76 inches | ||||
| Net Weight | A-Slipfitter | 4.41kg / 9.72 lbs | 4.41kg / 9.72 lbs | 4.54kg / 10.01 lbs | 6.25kg / 13.78 lbs | 6.37kg / 14.04 lbs |
| B-Adjustable Arm | 5kg / 11.02 lbs | 5kg / 11.02 lbs | 5.12kg / 11.29 lbs | 6.8kg / 15.0 lbs | 6.92kg / 15.26 lbs | |
| C-Yoke Mount | 4.17kg / 9.19 lbs | 4.17kg / 9.19 lbs | 4.3kg / 9.48 lbs | 6.08kg /13.4 lbs | 6.2kg / 13.67 lbs | |
| D-Slide Lock Mount | 4.57kg / 10.08 lbs | 4.57kg / 10.08 lbs | 4.7kg / 10.36 lbs | 6.2kg / 13.67 lbs | 6.32kg / 13.93 lbs | |
| E-Square Pole | 4.22kg / 9.30 lbs | 4.22kg / 9.30 lbs | 4.35kg / 9.59 lbs | 6.08kg /13.4 lbs | 6.2kg / 13.67 lbs | |
| F-Round Pole | 4.77kg / 10.52 lbs | 4.77kg / 10.52 lbs | 4.9kg / 10.80 lbs | 6.4kg / 14.11 lbs | 6.52kg / 14.37 lbs | |
| G-Trunnion Mount | 4.73kg / 10.43 lbs | 4.73kg / 10.43 lbs | 4.86kg / 10.71 lbs | 6.54kg / 14.42 lbs | 6.66kg / 14.68 lbs | |
Distribution diagram
SLB-配光图-1 - 副本 拷贝
SLB-配光图-2 - 副本 拷贝
Application Scenarios
01 拷贝 (9)
02 拷贝 (9)
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
