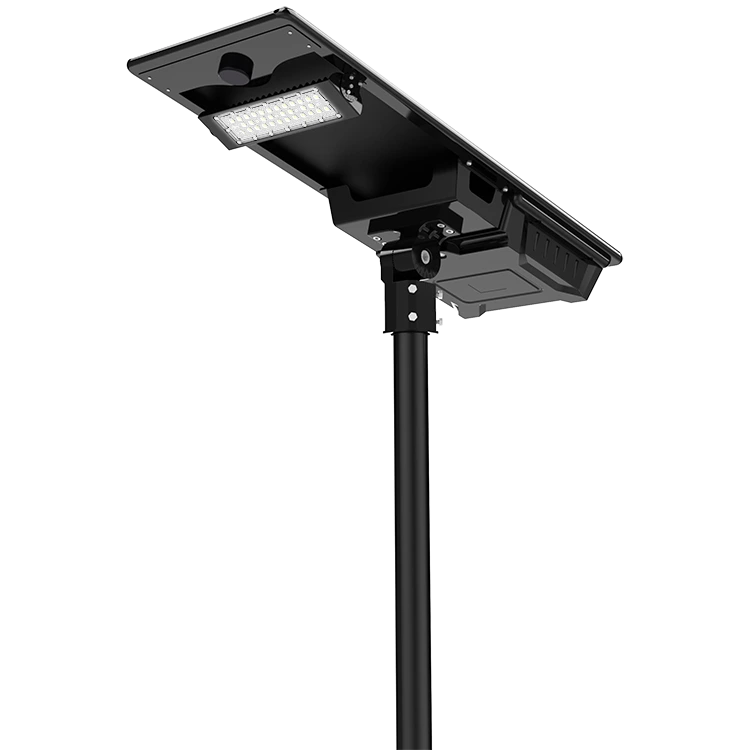

All-in-One Solar Street Light Smart Control-SD
✔ LITHIUM BATTERY: 12.8V, 12Ah
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T2, T3, T4, T5
✔ CONTROLLER: MPPT, IoT supported
✔ WARRENTY: 3 years standard, 5 years optional
✔ CERTIFICATION: CE/FCC/RoHs,For other certificates please request
main features
The AOK-SD series 20W LED solar street light is an efficient, eco-friendly, and cost-effective outdoor lighting solution ideal for city streets, rural roads, parking lots, parks, and gardens. Utilizing advanced solar technology, it converts sunlight into electricity for automatic lighting without a grid connection or through a hybrid grid-powered solution, thereby saving on electricity costs and reducing carbon emissions.
Key Features:
Application Scenarios
✔ City Streets: Enhances nighttime driving safety and reduces municipal electricity expenses.
✔ Rural Roads: Improves rural lighting conditions and promotes rural development.
✔ Parking Lots: Provides a safe parking environment for vehicles.
✔ Parks and Gardens: Beautifies the environment and enhances nighttime landscape effects.
Product Sheet & Installation Guide
Certificates, Patents, Reports
Product IES data (actual measurement)
Technical Parameter
|
Power |
20W |
30W |
40W |
50W |
60W |
80W |
100W |
120W |
|
|
Control Option |
Photocell sensor, Timing, dimming, intelligent power saving, microwave sensor or PIR sensor. |
||||||||
|
Standard working mode |
2H-100%; 4H-Detected: 60%, None: 20%; 6H-Detected: 40%, None: 10% |
||||||||
|
Photometric Data |
|||||||||
|
Luminous flux (lm, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra |
5050 |
4200lm |
6300lm |
8000lm |
10500lm |
12600lm |
16000lm |
21000lm |
24000lm |
|
Beam angle |
T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) |
||||||||
|
Mechanical Data |
|||||||||
|
Housing |
Heavy-duty die-cast aluminum (EN AC-46100)+PA66 |
||||||||
|
Mounting |
Post Top |
||||||||
|
Configuration Data |
|||||||||
|
Solar panel voltage(W) |
16V 40W |
18V 50W |
18V 60W |
18V 70W |
18V 80W |
36V 100W |
36V 120W |
36V 150W |
|
|
Li-ion Battery(WH) |
153.6WH |
230.4WH |
307.2WH |
384WH |
460.8WH |
614.4WH |
768WH |
921.6WH |
|
|
Maximum Autonomy |
Operate 2~3 rainy days under intelligent model. |
||||||||
|
Others |
|||||||||
|
Product Size |
750*366*106 mm / |
910*366*106 mm / |
1080*366*106 mm / |
1210*366*106 mm / |
1345*366*106 mm / |
1060*550*110 mm / |
1145*550*110 mm / |
1390*550*110 mm / |
|
|
Net Weight |
10kg / 22.0 lbs |
12kg / 26.5 lbs |
14kg / 30.9 lbs |
16kg / 35.3 lbs |
18kg / 39.7 lbs |
20kg / 44.1 lbs |
22kg / 48.5 lbs |
24kg / 52.9 lbs |
|
|
SCx (EPA) |
Top View: 0.340m²(3.65ft²) |
Top View: 0.400m²(4.31ft²) |
Top View: 0.470m²(5.06ft²) |
Top View: 0.530m²(5.70ft²) |
Top View: 0.590m²(6.35ft²) |
Top View: |
Top View: |
Top View: |
|
