Mega Capacity All-in-one Solar Street Lights-SAA
✔ BATTERY: Li-ion Battery
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T203(65*150°) / T212(75*165°) / T304(75*160°) / T402(80*150°) / T502(150*150°)
✔ CONTROLLER: MPPT/PWM Optional, custom IOT or remote control on request
main features

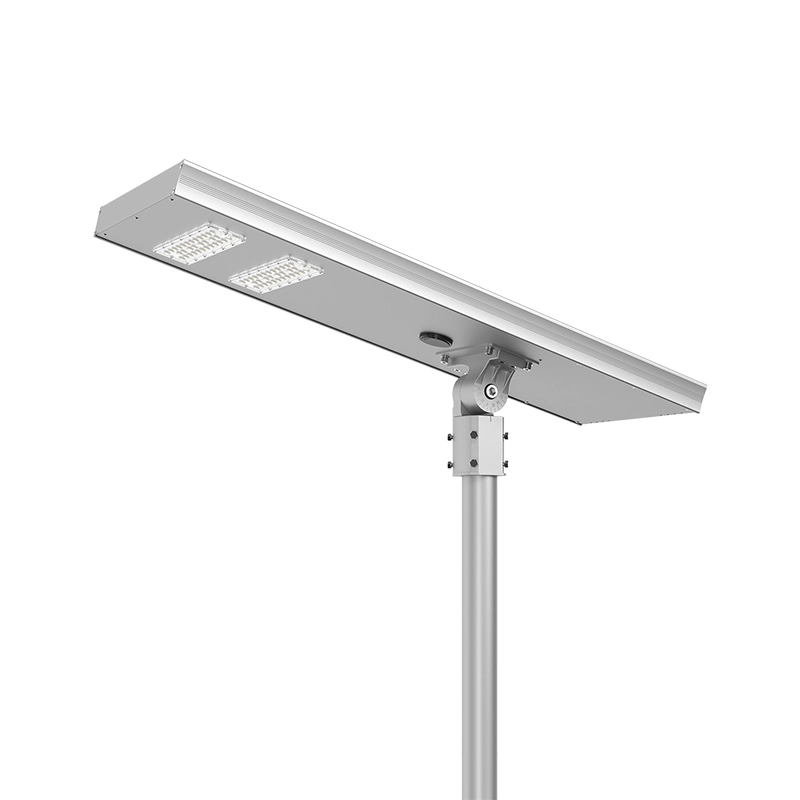

Mega power all-in-one LED solar street light
Introducing the next-generation 30W Mega Power All-in-One Solar Street Light SAA series, a groundbreaking lighting solution with a high-capacity battery designed for easy installation and maximum efficiency. This innovative solar light features a simplified connection system, eliminating complex wiring and technical challenges. Perfect for streets, pathways, parks, and remote locations, it harnesses solar energy for dependable, eco-friendly illumination.
Built with high-efficiency solar panels, a robust Li-ion battery, and smart control options, the Mega Power Solar Street Light ensures consistent performance and long-lasting brightness. Its durable, weather-resistant construction supports harsh environmental conditions, while its integrated design allows minimal maintenance. Experience advanced solar street lighting with unmatched convenience and sustainability.
Key Features:
Warranty:
3 to 5 years limited warranty. Please consult our sales team for detailed terms and agreements.
Product Sheet & Installation Guide
Certificates & Reports
IES
Technical Parameter
|
Power |
30W |
40W |
50W |
60W |
80W |
100W |
120W |
150W |
180W |
200W |
240W |
300W |
|
Control Option |
Photocell sensor, Timing, dimming, intelligent power saving, microwave sensor or PIR sensor. |
|||||||||||
|
Work Mode |
4H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10% |
|||||||||||
|
Photometric Data |
||||||||||||
|
Luminous flux (lm, Std. Dev. ±5%)@CCT=5700K, CRI>70Ra |
6600lm |
8800lm |
11000lm |
13200lm |
17600lm |
22000lm |
26400lm |
33000lm |
39600lm |
44000lm |
52800lm |
66000lm |
|
Beam Angle |
T203(65°*150°) / T212(75°*165°) / T304(75°*160°) / T402(80°*150°) / T502(150°*150°) |
|||||||||||
|
Mechanical Data |
||||||||||||
|
Housing |
Alluminum+SPCC |
|||||||||||
|
Mounting |
Post Top |
|||||||||||
|
Configuration Data |
||||||||||||
|
Solar Panel Voltage(W) |
18V 40W |
18V 60W |
18V 70W |
18V 80W |
18V 100W |
36V 120W |
36V 150W |
36V 180W |
36V 200W |
36V 240W |
36V 300W |
36V 360W |
|
Li-ion Battery(WH) |
192WH |
384WH |
384WH |
576WH |
576WH |
768WH |
1152WH |
1152WH |
1536WH |
1536WH |
1920WH |
2304WH |
|
Maximum Autonomy |
Operate 2~3 rainy days under intelligent model. |
|||||||||||
|
Others |
||||||||||||
|
Product Size |
625*365*55 |
885*365*55 |
1055*365*55mm |
1170*365*55 |
1060*525*55mm |
1145*525*55 |
1391*525*55 |
1385*705*55mm |
1472*705*55mm |
1617*765*55 |
1647*955*55mm |
1847*955*55mm |
|
Net Weight |
8.6 kg |
10.5 kg |
12.8 kg |
13.5 kg |
18.8 kg |
19.9 kg |
24.6 kg |
30.5 kg |
36.2 kg |
37.6kg |
43.5 kg |
49.6 kg |
|
SCx (EPA) |
to be updated |
|||||||||||
