Highway & Roadway Lighting Solution-ILA
20W-230W highway&roadway lighting solution Zhaga NEMA standard
20W-230W highway and roadway lighting solution AOK ILA series with Zhaga NEMA standard, offering energy efficiency, durability, and smart control for enhanced street illumination.
✔ EFFICACY: up to 160lm/W
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09 with tempered glass
✔ DISTRIBUTION: T2 (85*150°, 110*155°, 75*150°) / T3 (100*160°, 90*150°, 100*145°) / T4 (115*145°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ LEDs: 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09 with tempered glass
✔ DISTRIBUTION: T2 (85*150°, 110*155°, 75*150°) / T3 (100*160°, 90*150°, 100*145°) / T4 (115*145°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ LEDs: 3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
ILA-产品详情页-1 (3)
ILA-产品详情页-2 (3)
ILA-产品详情页-3 (3)
Product Description
Dimensions
Downloads

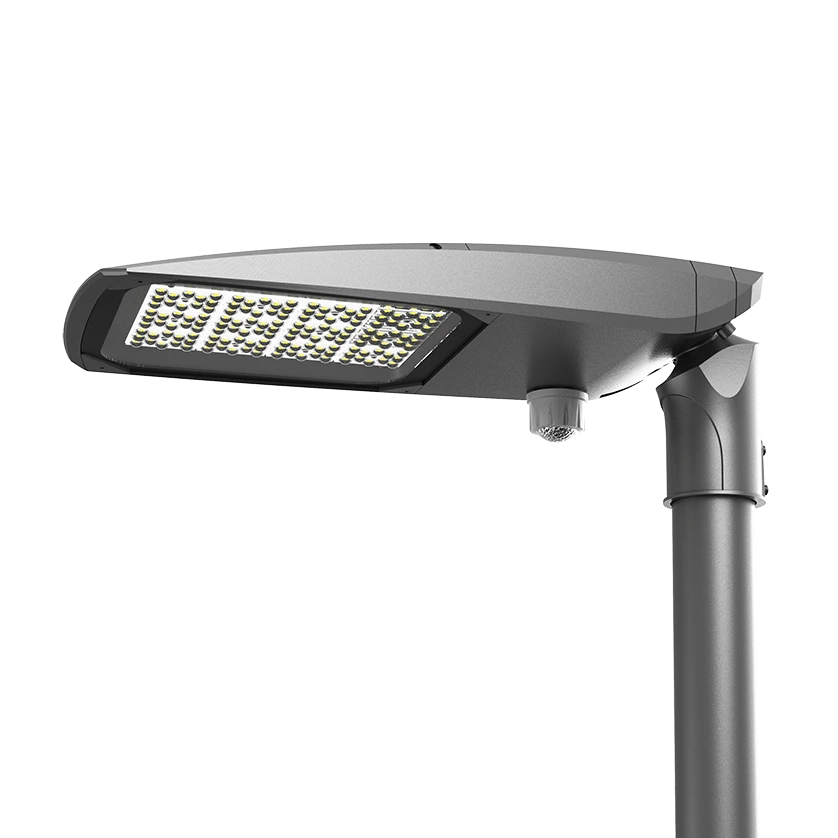

The LED Street Light AOK ILA Series is expertly crafted for European streets, delivering superior illumination with its 0W LED light. Each luminaire is designed with individual lenses made from optical-grade Mitsubishi polycarbonate to maximize light intensity. The micro-lens systems provide IESNA Type II, Type III, and Type IV light distributions, ensuring optimal coverage. Maintenance is effortless thanks to a tempered glass cover and a hinged, toolless entry door. The heavy-duty die-cast aluminum housing and door enhance durability, while built-in circuit breakers and tool-free electrical gear trays simplify auto-electrical disconnection. The luminaire's 0% total lumens above 90° results in a BUG rating of U=0, eliminating up-light pollution.
Ideal for highways, the AOK ILA Series LED Street Light is your go-to solution for high-quality and reliable street lighting. With IK09 impact resistance, anti-corrosion ratings, and IP66 waterproofing, it’s designed to withstand harsh environments. Invest in the best LED street lighting for highways in Europe and experience unmatched quality, longevity, and performance.
Features of the ILA Series:
Power range
20W to 180W (200W optional), Class I/Class II.
Energy saving
System efficiency up to 160lm/W with high lumen output and precise light patterns for energy savings.
High-quality lenses
Premium optical-grade Mitsubishi polycarbonate lens ensures high optical efficiency and superior resistance to environmental threats such as heat, cold, sunlight, and moisture.
Microlens
Micro-lens systems offer IESNA Type II, Type III, Type IV, and Type V distributions.
Excellent uniformity and low glare
Excellent uniformity and low glare for maximum comfort and environmental friendliness.
Tempered glass
Optical systems maintain an IP66 rating with a durable tempered glass cover.
CCT
Available in CCT options of 2700K, 3000K, 4000K, 5000K, 5700K, and 6500K.
ULOR
ULOR = 0%, preventing up-light pollution.
CRI options
70 Ra, 80 Ra, 90 Ra.
Coating
Anti-UV thermosetting polyester finish with a rugged, weather-tight design and 3G vibration rating for enhanced durability.
Photometric Design
✔ High optical efficiency with premium Mitsubishi polycarbonate lenses, offering excellent resistance to environmental degradation.
✔ Precise light distribution directed towards the target area for superior illumination.
✔ Lighting management capabilities including control and automatic intensity reduction.
✔ Excellent uniformity and low glare for optimal comfort and environmental impact.
Application Reference
Road lighting
Area lighting
Perimeter lighting
Area lighting
Perimeter lighting
Mounting & Control Option
Designed for versatile mounting and control solutions to meet diverse street lighting needs.
Product Sheet & Installation Guide
Certificates & Reports
IES Files
ZIP
Technical Parameter
20W-60W
70W-100W
120W-180W
240W-300W
| Power(W) | 20W | 30W | 40W | 50W | 60W | |
| Driver brand | Inventronics/Class 1, (Sosen, Philips, OSRAM, Moso) / Class 1, Class 2, EU | |||||
| Control option | DALI-2, D4i,1-10V/ PWM / Timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. | |||||
| Photometric Specifications | ||||||
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) |
T2(105*160°)/T3(115*160°)/ T5(150*150°)@A5050 | 3800lm | 5550lm | 7600lm | 9400lm | 11160lm |
| Beam angle | Type-II (85*150°, 110*155°, 75*150°, 100*160°,100*155°,105*160°) / Type III (100*160°, 90*150°, 100*145°, 120*160°, 80*155°, 115*160°) / Type IV (125*160°, 115*145°) / Type V (150*150°) | |||||
| LED model | Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050 | |||||
| Lens | Polycarbonate+tempered glass (4 mm thick) | |||||
| Mechanical Specifications | ||||||
| SCx (EPA) | Top view:0.0914m², Side view:0.029m² | |||||
| Mounting | Post Top/Side Entry | |||||
| Others | ||||||
| Product size | 537*210*88mm / 21.14*8.27*3.46 inches | |||||
| Net weight | 3.4kg / 7.50 lbs | |||||
| Standard Accessories | Standard SPD 10kV (EU) | |||||
| Optional Accessories | Lid support, circuit breaker,SPD 20KV, breather vent, Nema photoelectric control socket, photoelectric controller, Zhaga socket, PIR sensor, microwave sensor. | |||||
| Power(W) | 70W | 80W | 90W | 100W | 110W | |
| Driver Brand | Inventronics/Class 1, (Sosen, Philips, OSRAM, Moso) / Class 1, Class 2, EU | |||||
| Control Option | DALI-2, D4i,1-10V/ PWM / Timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. | |||||
| Photometric Specifications | ||||||
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) |
T2(105*160°)/T3(115*160°)/ T5(150*150°)@A5050 |
13300lm | 15040lm | 16830lm | 18600lm | 20350lm |
| Beam angle | Type-II (85*150°, 110*155°, 75*150°, 100*160°,100*155°,105*160°) / Type III (100*160°, 90*150°, 100*145°, 120*160°, 80*155°, 115*160°) / Type IV (125*160°, 115*145°) / Type V (150*150°) | |||||
| LED model | Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050 | |||||
| Lens | Polycarbonate+tempered glass (4 mm thick) | |||||
| Mechanical Specifications | ||||||
| SCx (EPA) | Top view:0.103m²,Side view:0.031m² | |||||
| Mounting | Post Top/Side Entry | |||||
| Others | ||||||
| Product Size | 567*228*88mm / 22.32*8.98*3.46 inches | |||||
| Net Weight | 4kg / 8.82 lbs | |||||
| Standard Accessories | Standard SPD 10kV (EU) | |||||
| Optional Accessories | Lid support, circuit breaker,SPD 20KV, breather vent, Nema photoelectric control socket, photoelectric controller, Zhaga socket, PIR sensor, microwave sensor. | |||||
| Power(W) | 120W | 130W | 140W | 150W | 160W | 170W | 180W | 200W | |
| Driver brand | Inventronics/Class 1, (Sosen, Philips, OSRAM, Moso) / Class 1, Class 2, EU | ||||||||
| Control option | DALI-2, D4i,1-10V/ PWM / Timer dimming, Nema, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. | ||||||||
| Photometric Specifications | |||||||||
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) |
T2(105*160°)/T3(115*160°)/ T5(150*150°)@A5050 |
22440lm | 24180lm | 25900lm | 27600lm | 29120lm | 30770lm | 32400lm | 35400lm |
| Beam angle | Type-II (85*150°, 110*155°, 75*150°, 100*160°,100*155°,105*160°) / Type III (100*160°, 90*150°, 100*145°, 120*160°, 80*155°, 115*160°) / Type IV (125*160°, 115*145°) / Type V (150*150°) | ||||||||
| LED model | Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050 | ||||||||
| Lens | Polycarbonate+tempered glass (4 mm thick) | ||||||||
| Mechanical Specifications | |||||||||
| SCx (EPA) | Top view:0.134m², Side view:0.035m² | ||||||||
| Mounting | Post Top/Side Entry | ||||||||
| Others | |||||||||
| Product size | 632*259*89mm / 24.88*10.2*3.5 inches | ||||||||
| Net weight | 6.0kg / 13.23 lbs | ||||||||
| Standard Accessories | Standard SPD 10kV (EU) | ||||||||
| Optional Accessories | Lid support, circuit breaker,SPD 20KV, breather vent, Nema photoelectric control socket, photoelectric controller, Zhaga socket, PIR sensor, microwave sensor. | ||||||||
| Power(W) | 240W | 250W | 260W | 270W | 280W | 290W | 300W | |
| Driver brand | Moso/Inventronics、Sosen/Class 1,(Philips、uPowerTek)/Class 1、 Class 2 | |||||||
| Control option | DALI-2, D4i,0/1-10V, PWM, timer dimming | |||||||
| Photometric Specifications | ||||||||
| Luminous flux (lm) (CRI 70Ra, 5000K) (Std Dev ±5%) |
T2(105*160°)/T3(115*160°)/ T5(150*150°)@A5050 |
44640lm | 46250lm | 47840lm | 49410lm | 50960lm | 52490lm | 54000lm |
| Beam angle | Type-II (85*150°, 110*155°, 75*150°, 100*160°,100*155°,105*160°) / Type III (100*160°, 90*150°, 100*145°, 120*160°, 80*155°, 115*160°) / Type IV (125*160°, 115*145°) / Type V (150*150°) | |||||||
| LED model | Lumileds 3030, 5050 / Seoul 3030, 5050 / A5050 | |||||||
| Lens | Polycarbonate+tempered glass (4 mm thick) | |||||||
| Mechanical Specifications | ||||||||
| SCx (EPA) | 0.2m²(top view), 0.041m² (side view) | |||||||
| Mounting | Post Top/Side Entry | |||||||
| Others | ||||||||
| Product size | 757*315*88mm/29.8*12.4*3.46inches | |||||||
| Net weight | 8.6kg/18.96lbs | |||||||
| Standard Accessories | Standard SPD 10kV (EU) | |||||||
| Optional Accessories | Lid support, circuit breaker,SPD 20KV, breather vent, Nema photoelectric control socket, photoelectric controller, Zhaga socket, PIR sensor, microwave sensor. | |||||||
Distribution diagram
ILA-配光图-1 (2)
ILA-配光图-2 (2)
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
