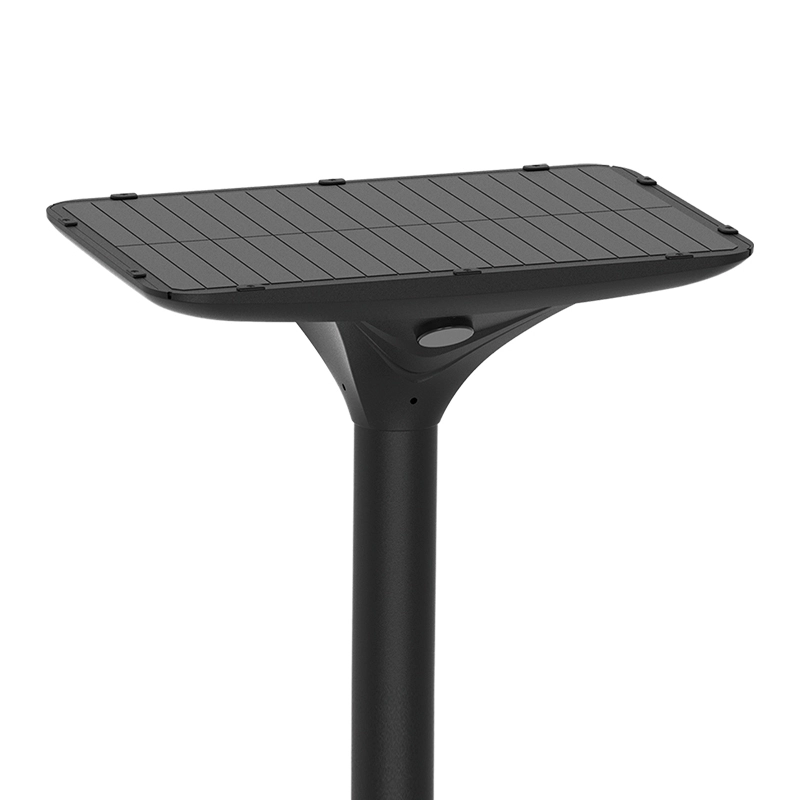

Solar-Powered-LED Garden Lighting-SC
✔ LITHIUM BATTERY: 12.8V, 6Ah
✔ SOLAR PANEL: Monocrystalline
✔ KELVIN OPTIONS: 3000K-6500K
✔ WATERPROOF: IP65
✔ DISTRIBUTION: T5
✔ CONTROLLER: MPPT, IoT supported
✔ WARRANTY: 3 years standard, 5 years optional
✔ CERTIFICATION: CE/FCC/RoHS, For other certificates please request
main features
Looking to buy 10W green energy solar garden lights for your outdoor space? The AOK SC series LED solar-powered lighting is the ideal solution for enhancing street, landscape, courtyard, and pathway areas. Featuring a combination of a high-efficiency solar panel, powerful LED light, and a durable LiFeP04 battery, this system offers impressive brightness with minimal energy consumption. The result is a product that provides long-lasting illumination with minimal maintenance.
Equipped with an advanced MPPT controller, the AOK SC 10W solar-powered LED garden light ensures optimal performance and energy efficiency. Its sleek, streamlined design not only enhances the visual appeal but also integrates seamlessly into any environment, contributing to a beautiful urban landscape. For added flexibility, the lighting system can be powered by mains electricity or a hybrid grid connection, catering to various installation needs.
Key Features:
● Features 5050 LED chips, which deliver high-quality illumination suitable for both high-level specialized lighting and cost-effective solutions without compromising on performance.
● Area Lighting: Perfect for large open spaces such as parks and plazas.
● Garden and Park Lighting: Adds beauty and safety to garden paths and park areas.
Warranty:
3-Year Limited Warranty, 5-Year Optional.
Product Sheet & Installation Guide
Certificates & Reports
IES
Technical Parameter
|
Power |
10W |
20W |
30W |
|
Control function |
MPPT intelligent controller |
||
|
Standard working mode |
2H-Detected-100%, None-30%; 3H-Detected-70%, None-10%; 7H-Detected-40%, None-10% |
||
|
Photometric Data |
|||
|
Lens |
Polycarbonate |
||
|
Luminous flux (lm, Std Dev ±5%) (CRI 70Ra, 4000K) |
1900lm |
3800lm |
5700lm |
|
Mechanical Data |
|||
|
Housing |
Aluminum |
||
|
Mounting |
Round pole (Ø60mm) |
||
|
Configuration Data |
|||
|
Solar Panel |
18V, 35W |
18V, 35W |
18V, 35W |
|
Li-ion Battery(WH) |
76.8WH |
153.6WH |
230.4WH |
|
Maximum Autonomy |
Operate 2~3 rainy days under intelligent model. |
||
|
Others |
|||
|
SCx(EPA) |
Top View - 0.249m² (2.68ft²); Front View - 0.045m² (0.48ft²); Side View - 0.042m² (0.45ft²) |
||
|
Product Size |
570*370*180 mm / 22.5*14.6*7.1 inches |
||
|
Net Weight |
6.2kg / 13.7 lbs |
6.9kg / 15.2 lbs |
7.5kg / 16.5 lbs |
