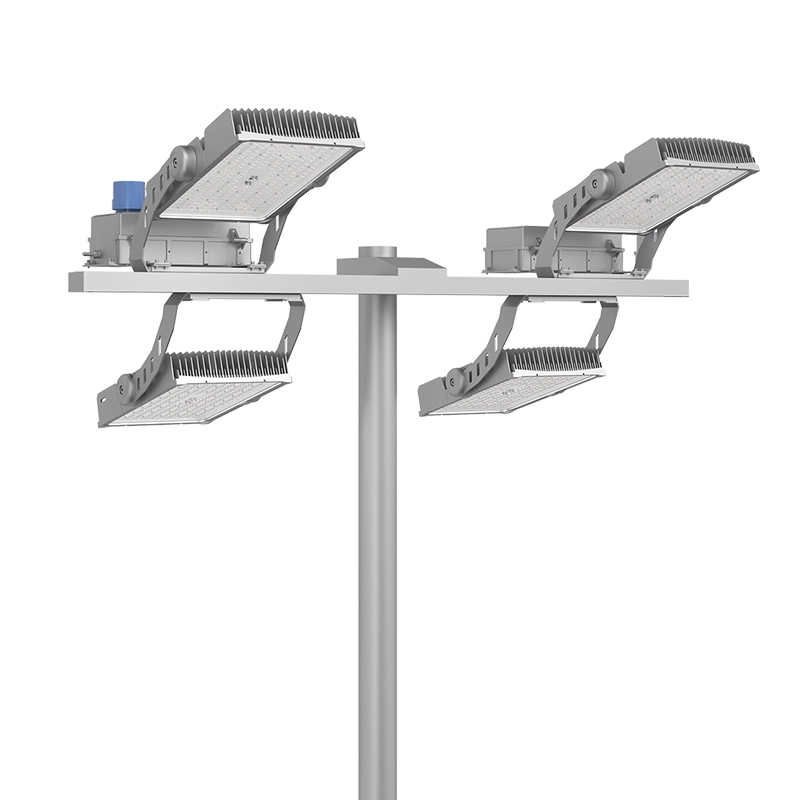

Highway & Seaport High-mast Flood Light-HMA
Highway and seaport outdoor lighting with 400W-600W high mast floodlight
Professional lighting design for the upgraded LED high-mast luminaire: 400W-600W HMA delivers exceptional illumination for highways, loading bays, and seaports
✔ LUMEN OUTPUT: Up to 56000lm
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09 with tempered glass
✔ DISTRIBUTION: Type-III (20x105°) /Type-V (150x150°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ LED Model: Lumileds 5050/Seoul5050/OSRAM P8
✔ CCT & CRI: 2700K-6500K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK09 with tempered glass
✔ DISTRIBUTION: Type-III (20x105°) /Type-V (150x150°)
✔ HOUSING: Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ LED Model: Lumileds 5050/Seoul5050/OSRAM P8
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
HMA-产品详情页-1
HMA-产品详情页-2
Product Description
Dimensions
Downloads
Discover the HMA LED High Mast Light, ideal for expressways, freeway interchanges, and expansive area applications. Engineered with unique reflective optics, this 400W aviation-grade LED high-mast light enhances efficiency while reducing glare, providing superior illumination. Compared to traditional HID fixtures, the HMA LED offers energy savings and lower operating costs. Elevate your highway lighting system with this professional, durable, and cost-effective 400W LED high-mast light solution.
Features
The HMA series offers versatility with its innovative design and flexible mounting bracket, making it suitable for a variety of applications, including high mast and floodlighting. It is known for its lightweight construction, easy installation, and exceptional light distribution quality.
Optical/Electrical Specifications
Housing
Heavy-duty die-cast aluminum (ADC12) for excellent heat dissipation.
Driver
High-efficiency options from Inventronics, Osram, or other Class 1, EU-compliant brands.
Light Source
Lumileds 5050, Seoul 5050, Osram P8, and other brands available.
Coating
Anti-UV thermosetting polyester with an 80-micron epoxy primer for corrosive environments.
Control Options
DALI, 0-10V/PWM/timer dimming, Nema, NTC, presence detection sensor; Dim-to-Off with standby power ≤ 0.5W.
Lighting Distribution
100% precise with ULOR=0%, eliminating upper light pollution.
Recommended Uses
✔ Airport lighting
✔ Expressways and freeway interchanges
✔ Port facilities
✔ Trailer/container yards and rail yards
Certifications/Listing
UL/cULus/FCC/ENEC/SAA/TUV, for other certificates please request.
Warranty
5-year standard warranty; optional 10-year warranty available. Contact AOK sales for detailed information.
HMA-尺寸图-1
HMA-尺寸图-2
Product Sheet & Installation Guide
Certificates
IES
Technical Parameter
| Power | 400W | 480W | 600W | |
| Driver | Inventronics / OSRAM / Class 1, EU | |||
| Operating Temperature | -40°C to 55°C (-40 °F to 131 °F) | -40°C to 50°C (-40 °F to 122 °F) | ||
| Control Option | DALI, 0-10V/ PWM / timer dimming, Nema, NTC, Presence detection sensor. Dim-to-Off with standby power <= 0.5W. | |||
| Photometric Data | ||||
| Luminous flux (lm) (CRI 70Ra, 5000K,277Vac)(Std Dev ±5%) | Type-III-P8 (20x105°) | 56000lm | 67200lm | 84000lm |
| Type-V-L5 (150x150°) | 56000lm | 67200lm | 84000lm | |
| ULR | = 0%, @ Luminaire inclination 0° | |||
| Beam angle | Type-III (20x105°) /Type-V (150x150°) | |||
| LED model | Lumileds 5050/Seoul5050/OSRAM P8 | |||
| Lens | Polycarbonate+tempered glass(5 mm thick) | |||
| Mechanical Data | ||||
| SCx | Type-A (Highmast) | Front: 0.05 m²; Side: 0.1 m² | ||
| Type-B (U-bracket split mode) | Front: 0.15 m²; Side: 0.05 m² | |||
| Type-BXR (Driver on the back) | Front: 0.15 m²; Side: 0.09 m² | |||
| Type-BXS (Driver on the bracket) | Front: 0.16 m²; Side: 0.08 m² | |||
| Mounting | Type-A (Side entry) / Type-B (U bracket) / Type-BXR (Driver on the back) / Type-BXS (Driver on the bracket) | |||
| Others | ||||
| Product Size | Type-A | 618*320*241mm / 24.33*12.6*9.48 inches | ||
| Type-B | 458*386*331mm / 18.03*15.2*13.03 inches | |||
| Type-BXR (Driver on the back) | 458*386*331mm / 18.03*15.2*13.03 inches | |||
| Type-BXS (Driver on the bracket) | 535*404*458mm / 21.06*15.91*18.03 inches | |||
| Net Weight | Type-A | 17.3kg / 38.14lbs | ||
| Type-B | 11kg / 24.25lbs | |||
| Type-BXR (Driver on the back) | 16.3kg / 35.94lbs | |||
| Type-BXS (Driver on the bracket) | 17.3kg / 38.14lbs | |||
| Standard accessories | Safety wire rope | |||
| Optional accessories | NEMA socket, photocell (with Nema), circuit breaker, breather vent, 20KvSPD | |||
Distribution diagram
HMA-配光图-1
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
