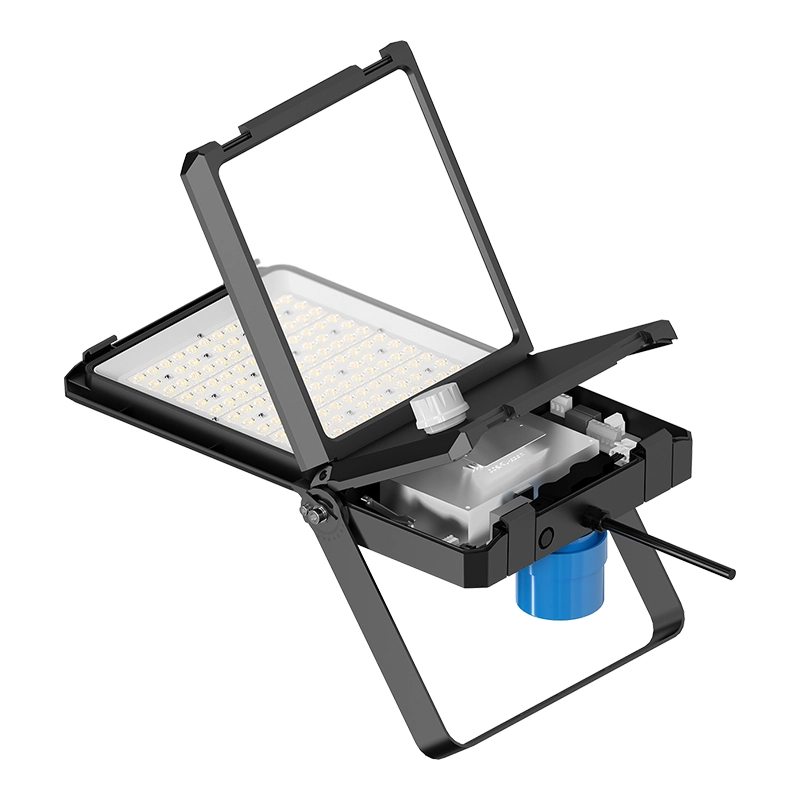

Tool-less Replacement LED Flood & Tunnel Light-FLC
✔ STANDARD CCT & CRI: 3000K/4000K/5000K, Ra70, Ra80
✔ IP & IK RATING: IP66/IK08 with glass
✔ DISTRIBUTION: 15°/30°/45°/60°/90°/120°/T2(60*150°)/T3(70*150°)/T4(70*150°)
✔ LIGHT CONTROL: Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
✔ LEDs: 2835/3030 / 5050
✔ WARRANTY: 5 years in standard, 10 years optional
main features
AOK Eco-Friendly Europe Tool-less LED Flood Light (FLC Series – 50W to 400W)
Experience the next generation of high-performance, eco-conscious lighting with the AOK W Tool-less FLC Series—a versatile LED flood light designed for effortless maintenance, exceptional efficiency, and long-term reliability. Engineered to meet Zhaga and NEMA standards, this series is especially tailored for the European market, offering a sustainable solution that reduces carbon emissions while maximizing illumination. Ideal for a wide range of outdoor applications such as tunnels, roadways, parking lots, public spaces, and sports facilities.
Key Features:
Recommended Applications
✔ Tunnels: Bright, consistent lighting for improved safety
✔ Roadways: Efficient illumination for both urban and rural routes
✔ Public Areas: Parks, plazas, and pedestrian zones
✔ Commercial Zones: Enhances visibility for businesses and parking spaces
✔ Sports Facilities: Ideal for playgrounds, running tracks, and football fields
Optional 10-Year Extended Warranty (Contact AOK sales for details)
Technical Parameter
|
Model |
AOK-FLC50W |
AOK-FLC100W |
AOK-FLC150W |
AOK-FLC200W |
AOK-FLC240W |
AOK-FLC300W |
AOK-FLC400W |
|
Power(W, adjustable selection) |
30-40-50W |
60-80-100W |
100-120-150W |
120-150-200W |
150-200-240W |
200-250-300W |
300-350-400W |
|
Control option |
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%. |
||||||
|
Operating temperature |
-40°C to 50°C (-40 °F to 122 °F) |
||||||
|
Photometric Specifications |
|||||||
|
Luminous flux(lm)±5% |
4500-7500lm |
9000-15000lm |
15000-22500lm |
18000-30000lm |
22500-36000lm |
30000-45000lm |
45000-60000lm |
|
Luminous flux(lm)±5% |
5100-8500lm |
10200-17000lm |
17000-25500lm |
20400-34000lm |
24750-39600lm |
34000-51000lm |
49500-66000lm |
|
Luminous flux(lm)±5% |
5850-9500lm |
11400-18500lm |
19000-27300lm |
22800-36400lm |
27750-43200lm |
38000-54900lm |
55500-72000lm |
|
LED model |
2835 / 3030 / 5050 optional |
||||||
|
Lens |
Polycarbonate |
||||||
|
Beam angle |
15°/30°/45°/60°/90°/120°/T2(60*150°)/T3(70*150°)/T4(70*150°) |
||||||
|
Mechanical Specifications |
|||||||
|
SCx (EPA) |
To be updated |
||||||
|
Mounting |
Type-A (Yoke mount), Type-B (Trunnion mount), Type-C (Trunnion+pole fitter) |
||||||
|
Package Info |
|||||||
|
Product Size |
16.06*9.65*2.20 inches / |
18.9*11.61*2.20 inches / |
16.06*9.65*2.20 inches / |
||||
|
Net Weight |
3.3KG |
3.5KG |
5.0KG |
5.4KG |
5.5KG |
6.8KG |
7.3KG |
Distribution diagram
