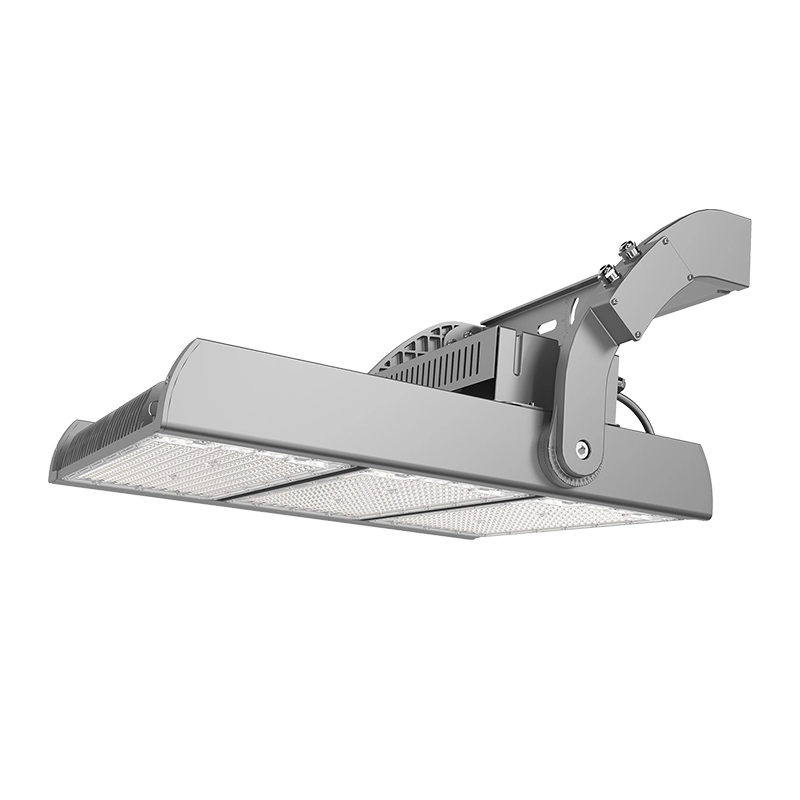

buy Tool-less 400W-1200W Sports Light Stadium Light & Flood Light
The 400W-1200W LED Sports light is the ideal choice for energy-efficient and cost-effective stadium lighting, as well as large outdoor lighting applications such as ports and docks.
✔ SYSTEM EFFICACY: up to 185lm/W
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION OPTIONS: PG60°(120°×40°)
✔ LED Model: 3030/5050
✔ LIGHT CONTROL: Glare control, = 0%, @ Luminaire inclination 0°, Support dimming, DALI, DMX512
✔ HOUSING:Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION OPTIONS: PG60°(120°×40°)
✔ LED Model: 3030/5050
✔ LIGHT CONTROL: Glare control, = 0%, @ Luminaire inclination 0°, Support dimming, DALI, DMX512
✔ HOUSING:Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
FSC-产品详情页-2
FSC-产品详情页-1
Product Description
Dimensions
Downloads
AOK Tool-Less FSC-Series Sports Lighting Solution
Upgrade your lighting with the AOK Tool-Less FSC-Series, featuring 400W LED stadium lights perfect for energy-efficient and cost-effective illumination. Ideal for sports stadiums and large outdoor applications such as ports and docks, this solution is tailored specifically for the European market. With its high-performance design, it ensures exceptional energy efficiency, easy component replacement, and eco-friendly operation.
Key Features:
Plug & Play Replacement
Modular design allows for effortless component replacement and recycling without the need for tools.
Outstanding Efficacy
Delivers up to 185 lumens per watt, providing bright and efficient lighting for a range of applications.
Versatile LED Options
Compatible with LEDs including 3030 and 5050, offering adaptable lighting solutions.
Enhanced Surge Protection
Optional surge protection with 10kV or 20kV ratings to prevent damage from electrical surges.
Exceptional Vibration Resistance
3G-rated for durability, conforming to IEC 68-2-6 standards.
Superior Protection Ratings
Rated IP66 for dust and water resistance and IK10 for impact resistance, adhering to EN 60529 and EN 62262 standards.
Flexible Mounting Options
Available with yoke mount or remote split installation for versatile setup.
Long Lifespan
Features an L70B10 rating of 108,000 hours at 25°C for 5050 LEDs and 72,000 hours for 3030 LEDs.
Smart Lighting Control
Supports Zigbee and other wireless control options for area lighting management, dimming, and setting adjustments.
Surface treatment
Anti-UV thermosetting polyester/80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
Recommended Uses
✔ Community Sports Stadiums: Ideal for illuminating sports facilities with high efficiency and reliability.
✔ Train Stations & Sea Ports: Perfect for large-scale outdoor operations and transportation hubs.
✔ Large Outdoor Operations: Suitable for extensive outdoor areas requiring bright and durable lighting.
Choose the AOK Tool-Less FSC-Series for high-efficiency, durable, and eco-friendly lighting solutions that cater to your specific needs in sports and large outdoor settings.
Warranty
5 Year Limited Warranty, 10 Year Preferred Warranty. Please consult with our sales for detailed agreement.
Certification/Listing
CE, ROHS, ENEC standard, for detailed certificates please request.
Product Sheet & Installation Guide
Certificates & Reports
FSC (Simulation of IES, no mold opening)
IES Files
Technical Parameter
| Power(w) | 400W | 600W | 800W | 1000W | 1200W | ||
| Modules | 1 | 2 | 2 | 3 | 3 | ||
| Control option | Driver includes wiring for 0-10V dimming systems. Dim as low as 10%. | ||||||
| Photometric Data | |||||||
| Luminous Flux@5050(lm, Std Dev ±5%) @CRI 70Ra, 4000K |
15D | 62000lm | 96000lm | 124000lm | 160000lm | 186000lm | |
| 20*30D | 62000lm | 96000lm | 124000lm | 160000lm | 186000lm | ||
| 30D | 72000lm | 111000lm | 144000lm | 185000lm | 216000lm | ||
| 60D | 72000lm | 111000lm | 144000lm | 185000lm | 216000lm | ||
| PG60D | 72000lm | 111000lm | 144000lm | 185000lm | 216000lm | ||
| 30D-Pro | 78000lm | 120000lm | 156000lm | 200000lm | 234000lm | ||
| 60D-Pro | 78000lm | 120000lm | 156000lm | 200000lm | 234000lm | ||
| PG60D-Pro | 78000lm | 120000lm | 156000lm | 200000lm | 234000lm | ||
| Luminous Flux@3030(lm, Std Dev ±5%) | PG60D | 56000lm | 87000lm | 112000lm | 145000lm | 168000lm | |
| LED model | A5050 / S3030 | ||||||
| Beam angle | 15°/20*30°/30°/60°/PG60° (120°*40°） | ||||||
| ULR | = 0%, @ Luminaire inclination 0° | ||||||
| Mechanical Data | |||||||
| EPA(SCx), fixture body | Side:0.2828ft²(0.026m²); Top: 1.299ft²(0.121m²) |
Side: 0.0748ft²(0.805m²); Top: 2.7197ft²(0.253m²) |
Side: 1.0371ft²(0.096m²); Top: 3.9546ft²(0.367m²) |
||||
| Mounting | Yoke Mount | ||||||
| Other Data | |||||||
| Product Size | with driver box | 432*604*383mm / 17*23.78*15.08 inches |
550*604*383mm / 21.65*23.78*15.08 inches |
785*604*384mm / 30.91*23.78*15.12 inches |
|||
| without driver box | 432*604*293mm / 17*23.78*11.54 inches |
550*604*293mm / 21.65*23.78*11.54 inches |
785*604*293mm / 30.91*23.78*15.12 inches |
||||
| Net Weight | with driver box | 12.6KG /27.78 LBS | 17.8KG /39.24 LBS | 23.8KG /52.47 LBS | |||
| without driver box | 8.4KG /18.52 LBS | 13.3KG /29.32 LBS | 18.9KG /41.67 LBS | ||||
Distribution diagram
FSC-配光图-2
FSC-配光图-1
Application Scenarios
Highways
Provides clear, bright illumination for improved visibility and safety on major roads.
Public Areas
Enhances lighting for parks, plazas, and other public spaces.
Our Projects
Ensures consistent and efficient lighting for urban and rural roads.
Perfect for illuminating commercial areas and enhancing visibility for businesses.
