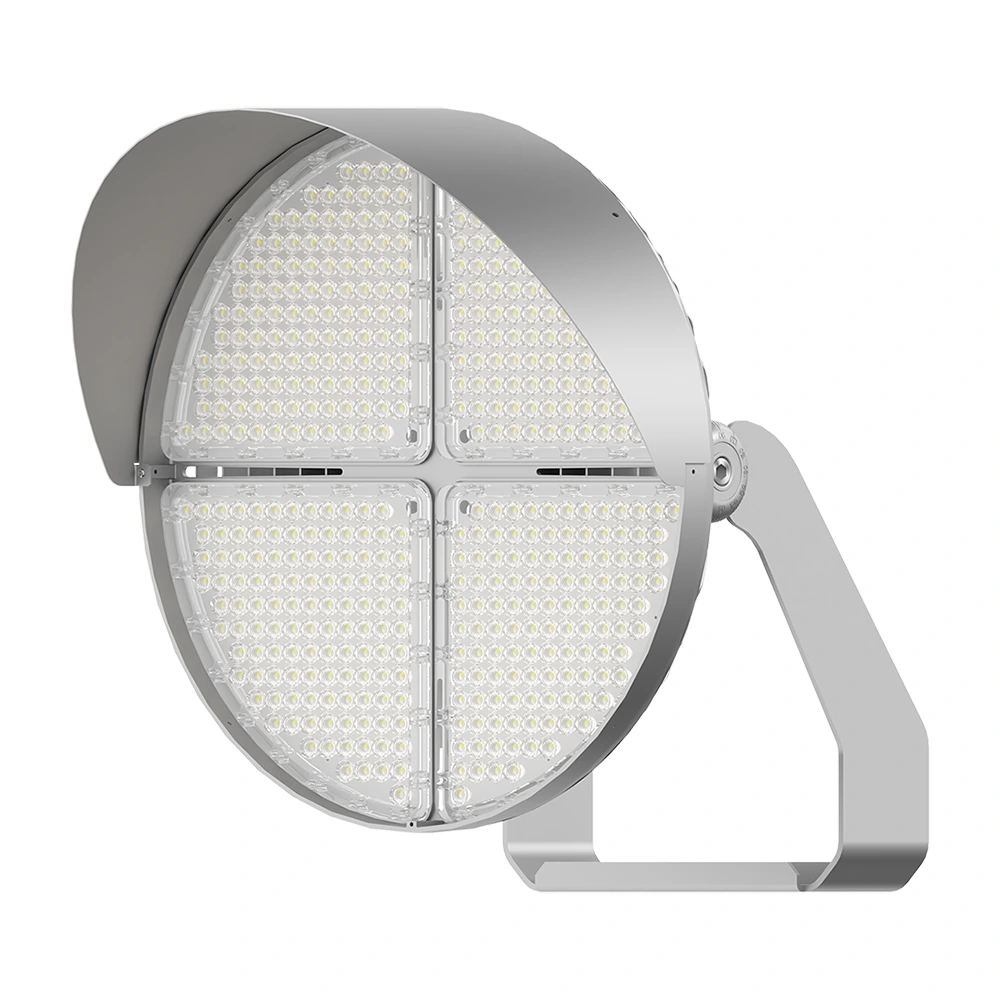

Sports Flood Light for Stadium Lighting-INS
✔ IP & IK RATING: IP66/IK10
✔ DISTRIBUTION OPTIONS: 15D/30D/60D/120D
✔ LED Model: 3030/3535
✔ LIGHT CONTROL: Glare control, Custom visors for additional cutoff and spill light control
✔ HOUSING:Heavy-duty die-cast aluminum (EN AC-46100)
✔ WARRANTY: 5 years in standard, 10 years optional
main features
315W stadium-lighting-sports-light
Upgrade your sports lighting with the INS-315W LED football sports lighting system from AOK lighting solution. Our high-quality flood lighting system is designed for exterior sports lighting, providing superior output and efficiency with minimal glare. With a unique optical design, the INS-315W LED system is perfect for lighting large areas, port and rail centers, and more. As a leading 315W LED football sports lighting company, we offer a range of flood distributions to meet your specific needs. Ready to purchase a top-quality lighting solution? Look no further than the INS-380W LED football sports lighting system from our company. Upgrade your stadium lighting with AOK sports lighting solutions.
Key Features:
● -40°C to 50°C (-40℉ to122℉) average operating temp range.
● 1-10V dimming driver device standard.
● 100-277Vac operation (50/60Hz) standard, 347V/480V(50/60Hz) optional.
● Train Sation & Port.
● Large outdoor industrial operation area.
WARRANTY
5-year standard warranty, 10-year warranty optional. Please consult with AOK sales for detailed agreement.
Product Sheet & Installation Guide
Reports
AOK iNS LM79 ISTMT IK IP IEC62471
AOK iNS LM82 ISTMT IK IP IEC62471
AOK INS IES test report
AOK-580WiNS-NV-L5-00-4070-120D-P
Technical Parameter
| Power(W) | 315W | 380W | 460W | 580W | 720W | |
| Control Option | DALI, 1-10V/PWM/Timer dimming, Nema, Zhaga/Presence detection sensor. | |||||
| Photometric Data | ||||||
| Luminous flux (lm) (Std Dev ±5%) |
15D | 43261 lm | 52098 lm | 63821 lm | 78187 lm | 96089 lm |
| 30D | 52566 lm | 58621 lm | 73677 lm | 92329 lm | 109447 lm | |
| 60D | 52929 lm | 58622 lm | 77315 lm | 93205 lm | 112023 lm | |
| 120D | — | — | 78108 lm | 95990 lm | 120878 lm | |
| Beam angle | 15D/30D/60D/120D | |||||
| LED model | Lumileds 5050 | |||||
| Lens | Polycarbonate, modular design | |||||
| Mechanical Data | ||||||
| SCx(EPA, Fixture body) | Front: 0.204386m2(2.2ft²) Side: 0.115943m2(1.248ft²) |
Front: 0.285212m2(3.07ft²) Side: 0.132665m2(1.428ft²) |
||||
| Mounting | TYPE A/TYPE B/TYPE C/TYPE D | |||||
| Others | ||||||
| Product size | TYPE-A | φ468*343mm / φ18.4*13.5 inches | φ550*336mm / φ21.7*13.2 inches | |||
| TYPE-B | φ468*559*407mm / φ18.4*22.0*16.0 inches | φ550*602*315mm / φ21.7*23.7*12.4 inches | ||||
| Net weight | TYPE-A | 10.3kg / 22.71 lbs | 10.3kg / 22.71 lbs | 16.08kg / 35.45 lbs | 16.08kg / 35.45 lbs | 16.08kg / 35.45 lbs |
| TYPE-B | 16.5kg / 36.38 lbs | 16.5kg / 36.38 lbs | 23.2kg / 51.15 lbs | 23.2kg / 51.15 lbs | 23.2kg / 51.15 lbs | |
Distribution diagram
