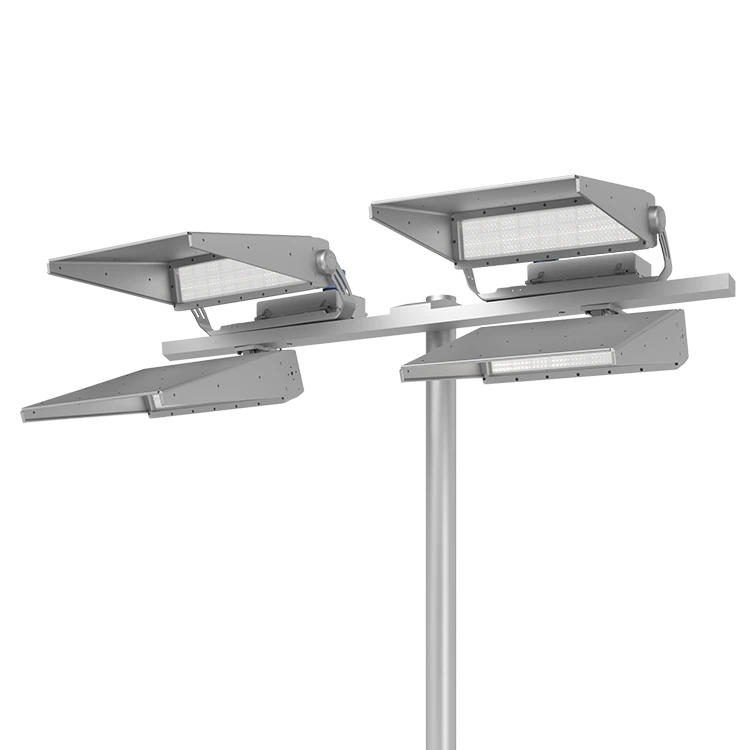

400W-1800W Professional Stadium Lighting Solution for FIFA Venues
400W-1800W Professional Stadium Lighting Solution delivering high-performance, energy-efficient illumination for FIFA arenas, stadiums with superior durability and smart controls.
✔ SYSTEM EFFICACY: up to 150lm/W
✔ DISTRIBUTION OPTIONS: 15D/20*30D/30D/35*85D/PG30D(45°x115°)/PG60D(60°x125°)
✔ LED Model: 5050/Z5M4 3535
✔ HDTV: TLCI>95, GR<30/40 (Optional)
✔ LIGHT CONTROL: Glare control, Custom visors for additional cutoff and spill light control, Support dimming, DALI, DMX512
✔ HOUSING:Heavy-duty die-cast aluminum (EN AC-46100)
✔ IP & IK RATING: IP66/IK08
✔ WARRANTY: 5 years in standard, 10 years optional
✔ DISTRIBUTION OPTIONS: 15D/20*30D/30D/35*85D/PG30D(45°x115°)/PG60D(60°x125°)
✔ LED Model: 5050/Z5M4 3535
✔ HDTV: TLCI>95, GR<30/40 (Optional)
✔ LIGHT CONTROL: Glare control, Custom visors for additional cutoff and spill light control, Support dimming, DALI, DMX512
✔ HOUSING:Heavy-duty die-cast aluminum (EN AC-46100)
✔ IP & IK RATING: IP66/IK08
✔ WARRANTY: 5 years in standard, 10 years optional
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
main features
ISF-产品详情页-2
ISF-产品详情页-1
ISF-产品详情页-3
ISF-产品详情页-4
Product Description
Dimensions
Downloads
AOK Sports Lighting Solution-ISF Series
Elevate your lighting with AOK professional sports lighting ISF-Series, featuring 400W LED stadium lights designed for energy-efficient and cost-effective illumination. Optimized for HD TV live streaming, this series offers a choice between a special reflector design and regular PC lens options, making it ideal for sports stadiums and large outdoor applications such as ports and docks. The high-performance design ensures exceptional energy efficiency, easy component replacement, and eco-friendly operation.
Key Features:
Outstanding Efficacy
Delivers up to 150 lumens per watt, providing bright, efficient lighting for various applications.
Special Gaming Design
Features a special reflector design or optional PC lens to minimize glare, optimize illumination and uniformity, and support 4K & HD TV live streaming (TLCI>95, GR<30/40).
Versatile LED Options
Compatible with Seoul 5050, CREE, LUMILEDS, and Seoul Z5M4 3535 LEDs, offering adaptable lighting solutions.
Enhanced Surge Protection
Optional 10kV or 20kV surge protection to safeguard against electrical surges.
Exceptional Vibration Resistance
3G-rated for durability, compliant with IEC 68-2-6 standards.
Superior Protection Ratings
Rated IP66 for dust and water resistance and IK08 for impact resistance, meeting EN 60529 and EN 62262 standards.
Advanced Surface Treatment
Anti-UV thermosetting polyester or 80-micron epoxy primer with anti-UV thermosetting polyester, ideal for extremely corrosive environments.
Flexible Mounting Options
Available in multiple mounting types: TYPE-A (Top-fixed I), TYPE-B (Yoke Mount), TYPE-Bx (with Driver Box), and TYPE-C (Top-fixed II).
Long Lifespan
L90B10 rated for over 100,000 hours at 25°C.
Smart Lighting Control
Supports Zigbee and other wireless control options, including dimming and DMX512 settings for precise lighting management.
Recommended Uses
✔ Sports Stadiums and Pitches: Ideal for illuminating sports facilities with high efficiency and reliability.
✔ Train Stations & Sea Ports: Perfect for large-scale outdoor operations and transportation hubs.
✔ Large Outdoor Operations: Suitable for extensive outdoor areas requiring bright and durable lighting.
Upgrade to the AOK ISF-Series for high-efficiency, durable, and versatile lighting that meets the demands of professional sports venues and large outdoor spaces.
Warranty
5 Year Limited Warranty, 10 Year Preferred Warranty. Please consult with our sales for detailed agreement.
Certification/Listing
UL/cULus, CE, ROHS, ENEC standard, for detailed certificates please request.
Product Sheet & Installation Guide
Certification
Installation Instructions
IES Data
Technical Parameter
Parameter Data
Dimension & Weight
| Power(W) | 400W | 600W | 800W | 1200W | 1500W | 1800W | |
| Modules | 1 | 1 | 2 | 2 | 3 | 3 | |
| Control Option | 0-10V/PWM Timer diming (Standard), DALI, DMX512 (Optional) | DALI, DMX512 (Standard) | |||||
| Photometric Data | |||||||
| Luminous flux (lm, Std. Dev.±5%) @CCT=4000K, CRI>70Ra |
15D | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm |
| 35*85D | 60000lm | 90000lm | 120000lm | 180000lm | 225000lm | 270000lm | |
| 20*30D | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm | |
| 30D | 60000lm | 90000lm | 120000lm | 180000lm | 225000lm | 270000lm | |
| PG30D(45*115D) | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm | |
| PG60D(60*125D) | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm | |
| Luminous flux (lm, Std. Dev.±5%) @CCT=4000K, CRI>70Ra, with visor |
15D | 50000lm | 75000lm | 100000lm | 150000lm | 187500lm | 225000lm |
| 35*85D | 54000lm | 81000lm | 108000lm | 162000lm | 202500lm | 243000lm | |
| 20*30D | 50000lm | 75000lm | 100000lm | 150000lm | 187500lm | 225000lm | |
| 30D | 54000lm | 81000lm | 108000lm | 162000lm | 202500lm | 243000lm | |
| PG30D(45*115D) | / | / | / | / | / | / | |
| PG60D(60*125D) | / | / | / | / | / | / | |
| Beam angle | 15D/20*30D/30D/35*85D/PG30D=45*115D/PG60D=60*125D | ||||||
| Mechanical Data | |||||||
| SCx (EPA) | Type-A | Top view: 0.11m² (1.20ft²) Front view: 0.06m² (0.63ft²) |
Top view: 0.21m² (2.31ft²) Front view: 0.06m² (0.63ft²) |
Top view: 0.32m² (3.39ft²) Front view: 0.06m² (0.63ft²) |
|||
| Type-AV (With Visor) | Top view: 0.39m² (4.22ft²) Front view: 0.11m² (1.20ft²) |
Top view: 0.45m² (4.80ft²) Front view: 0.21m² (2.31ft²) |
Top view: 0.51m² (5.45ft²) Front view: 0.32m² (3.39ft²) |
||||
| Type-C | Top view: 0.07m² (0.75ft²) Front view: 0.1m² (1.08ft²) |
Top view: 0.07m² (0.75ft²) Front view: 0.2m² (2.19ft²) |
to be updated | ||||
| Type-CV (With Visor) | Top view: 0.4m² (4.34ft²) Front view: 0.1m² (1.08ft²) |
Top view: 0.5m² (4.98ft²) Front view: 0.2m² (2.19ft²) |
to be updated | ||||
| Type-B | Top view: 0.1m² (1.11ft²) Front view: 0.13m² (1.39ft²) |
Top view: 0.11m² (1.20ft²) Front view: 0.23m² (2.45ft²) |
Top view: 0.12m² (1.26ft²) Front view: 0.32m² (3.44ft²) |
||||
| Type-BV (With Visor) | Top view: 0.44m² (4.71ft²) Front view: 0.13m² (1.39ft²) |
Top view: 0.11m² (1.20ft²) Front view: 0.5m² (5.41ft²) |
Top view: 0.56m² (6.07ft²) Front view: 0.32m² (3.44ft²) |
||||
| Type-Bx (Driver fixed) | Top view: 0.18m² (1.98ft²) Front view: 0.14m² (1.50ft²) |
Top view: 0.2m² (2.14ft²) Front view: 0.23m² (2.45ft²) |
Top view: 0.24m² (2.55ft²) Front view: 0.32m² (3.44ft²) |
||||
| Type-BxV (With Visor and driver fixed) | Top view: 0.52m² (5.57ft²) Front view: 0.14m² (1.50ft²) |
Top view: 0.59m² (6.33ft²) Front view: 0.23m² (2.45ft²) |
Top view: 0.68m² (7.37ft²) Front view: 0.32m² (3.44ft²) |
||||
| Mounting | TYPE-A(V)=Top-fixed I / TYPE-B(V)=Yoke Mount / TYPE-Bx(V)=Driver fixed / TYPE-C(V)=Top-fixed II; | ||||||
| LED model | Seoul 5050/Seoul Z5M4 3535 | ||||||
| Power(W) | 400W/600W | 800W/1200W | 1500W/1800W | ||||
| Modules | 1 | 2 | 3 | ||||
| Product size | Type-A | L599.2*W391.5*H155mm/ 23.6*15.4*6.1 inches |
L607.2*W561.4*H155mm/ 23.9*22.1*6.1 inches |
L607.2*W731.4*H155mm/ 23.9*28.8*6.1 inches |
|||
| Type-AV (With Visor) | L603.0*W697.0*H393.4mm/ 23.7*27.4*15.5 inches |
L603.0*W789.0*H563.4mm/ 23.7*31.5*22.2 inches |
L603.0*W889.0*H733.4mm/ 23.7*35*28.9 inches |
||||
| Type-C | L599.2*W365.2*H165mm/ 23.6*14.4*6.5 inches |
L607.2*W397.9*H335.0mm/ 23.9*15.7*13.2 inches |
- | ||||
| Type-CV (With Visor) | L603.0*W918.8*H165mm/ 23.7*36.2*6.5 inches |
L1041.4*W1041.4*H335.0mm/ 41*41*13.2 inches |
- | ||||
| Type-B | L704.3*W281.0*H242.5mm/ 27.7*11.1*9.5 inches |
L704.7*W355.5*H368.7mm/ 27.7*13.2*14.5 inches |
L674.9*W417.9*H523.8mm/ 26.6*16.5*20.6 inches |
||||
| Type-BV (With Visor) | L704.3*W834.5*H244.4mm/ 27.7*32.9*9.6 inches |
L704.7*W999.0*H370.7mm/ 27.7*39.3*14.6 inches |
L674.9*W1161.4*H525.7mm/ 26.6*45.7*20.7 inches |
||||
| Type-Bx (Driver fixed) | L666.7*W491.2*H242.5mm/ 26.2*19.3*9.5 inches |
L704.7*W561.8*H368.7mm/ 27.7*22.1*14.5 inches |
L674.9*W634.9*H523.8mm/ 26.6*25.0*20.6 inches |
||||
| Type-BxV (With Visor and driver fixed) | L666.7*W1044.7*H244.4mm/ 26.2*41.1*9.6 inches |
L704.7*W1205.3*H370.7mm/ 27.7*47.5*14.6 inches |
L674.9*W1378.4*H525.7mm/ 26.6*54.3*20.7 inches |
||||
| Net weight | Type-A | 13.2kg (29.1 lbs) / 16.3kg (35.9 lbs)-Driver included | 22.3kg (49.2 lbs) / 26.4kg (58.2 lbs)-Driver included | 30.9kg (68.1 lbs) / 36.9kg (81.4 lbs)-Driver included | |||
| Type-AV (With Visor) | 16kg (35.3 lbs) / 19kg (41.9 lbs)-Driver included | 26.2kg (57.8 lbs) / 30.1kg (66.4 lbs)-Driver included | 36.4kg (80.2 lbs) / 42.5kg (93.7 lbs)-Driver included | ||||
| Type-C | 11.1kg (24.5 lbs) / 14kg (30.9 lbs)-Driver included | 20.7kg (45.6 lbs) / 24.6kg (54.2 lbs)-Driver included | - | ||||
| Type-CV (With Visor) | 13.9kg (30.6 lbs) / 16.8kg (37.0 lbs)-Driver included | 24.6kg (54.2 lbs) / 28.5kg (62.8 lbs)-Driver included | - | ||||
| Type-B | 12.8kg (28.2 lbs) / 15.9kg (35.1 lbs)-Driver included | 23.5kg (51.8 lbs) / 26.9kg (59.3 lbs)-Driver included | 31.1kg (68.6 lbs) / 37.2kg (82.0 lbs)-Driver included | ||||
| Type-BV (With Visor) | 15.6kg (34.4 lbs) / 18.7kg (41.2 lbs) -Driver included | 27.2kg (60.0 lbs) / 30.8kg (67.9 lbs)-Driver included | 36.6kg (80.7 lbs) / 42.7kg (94.1 lbs)-Driver included | ||||
| Type-Bx (Driver fixed) | 21.1kg (46.5 lbs) -Driverbox included | 32.5kg (71.7 lbs) -Driverbox included | 41.4kg (91.3 lbs) | ||||
| Type-BxV (With Visor and driver fixed) |
23.9kg (52.7 lbs) -Driverbox included | 36.3kg (80.0 lbs)-Driverbox included | 46.9kg (103.4 lbs) | ||||
Distribution diagram
ISF-配光图-2
ISF-配光图-3
ISF-配光图-4
ISF-配光图-1
